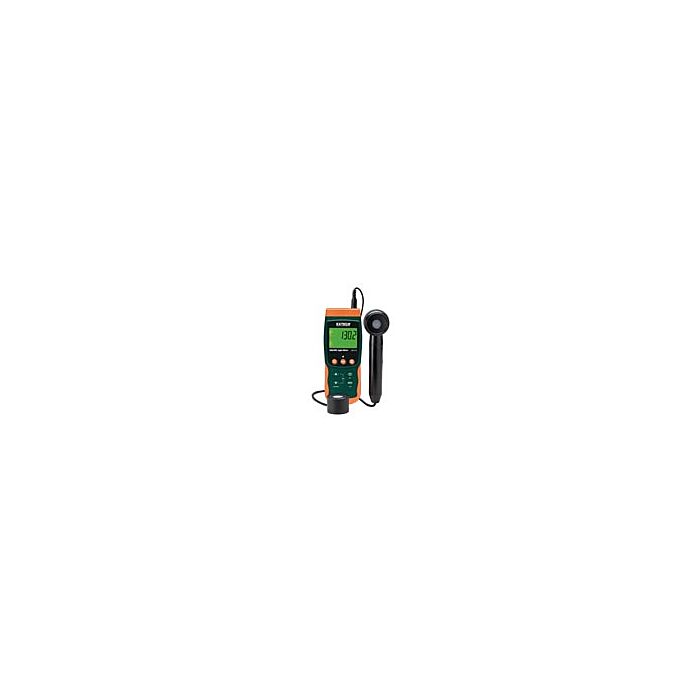

Extech SDL470 UVA/UVC Light Meter/Datalogger

Order # SDL470 | Mfg # SDL470
$999.00
Also Available:
Rental
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

  • UVA probe captures long-wave 365nm UV irradiance measurements under a UVA (black light) source
  • UVC probe captures short-wave 254nm UV irradiance measurements under a UVC light source
  • Cosine correction filter and metal housing
  • Datalogging feature records readings with date and time stamp on an SD card (included) in Excel® format
  • Offset adjustment used for zero function or to make relative measurements
  • Adjustable data sampling rate from 1 to 3600 seconds
  • Stores 99 readings manually
  • Type K/J Thermocouple input for temperature measurements (probes sold separately)
  • Large backlit LCD display
  • Record/Recall MIN, MAX readings, Data Hold plus Auto power off with disable function
  • Complete with built-in tilt stand, SD memory card, UVA light sensor with protective cover, UVC light sensor, hard case, Universal AC adaptor, and 6 x AA batteries

Technical Resources

Extech SDL470 UVA/UVC Light Meter/Datalogger Datasheet

Specifications

Specifications Range Max Resolution Basic Accuracy
UVA Range 2mW/cm², 20mW/cm² 0.001mW/cm² ±4% FS
UVC Range 2mW/cm², 20mW/cm² 0.001mW/cm² ±4% FS
Frequency Bandwidth 365nm (UVA); 254nm (UVC)

Type K Temperature -148 to 2372°F (-100 to 1300°C) 0.1°F/°C ±(0.4%±1.8°F/1°C)
Type J Temperature -148 to 2192°F (-100 to 1200°C) 0.1°F/°C ±(0.4%±1.8°F/1°C)
Memory Manual: 99 data readings; Includes SD memory card for datalogging

Dimensions/ Weight 7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm)/ 16.2oz (475g)
