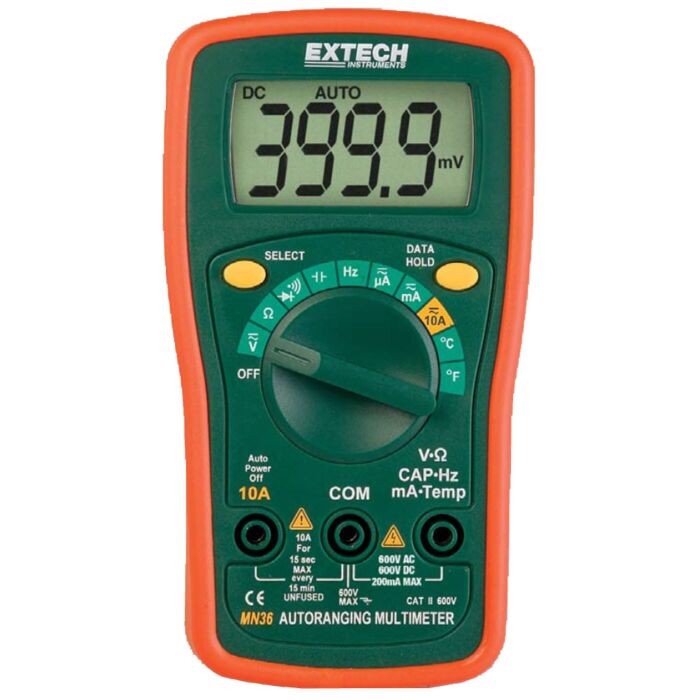

Extech MN36 Multimeter, Autoranging

Order # MN36 | Mfg # MN36
$44.99
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

Compact Autoranging multimeters with 10 functions including Temperature

The Extech MN36 digital multimeter is compact but still packed with features. Capable of measuring AC and DC voltage up to 600 volts, the MN36 is autoranging, which means it automatically displays readings with the proper decimal place location and maximum resolution. Comes with protective rubber holster, 2xAAA batteries, bead wire Type K temp. probe and test leads.

  • Large easy to read digital display
  • AC/DC Voltage, DC Current, Resistance, Capacitance, Frequency, Type K Temperature, Continuity/Diode
  • Convenient mini size with protective rubber holster and tilt stand
  • Data Hold locks reading in the display
  • Includes protective rubber holster, 2xAAA batteries, bead wire Type K temp. probe and test leads

Technical Resources

Extech MN35 and MN36 Datasheet
Extech MN36 User Manual

Specifications

Specifications Range Basic Accuracy
DC Voltage 600V (0.1mV) ±0.5%
AC Voltage 600V (0.1V) ±1.2%
DC Current 10A (0.1µA) ±1.2%
AC Current 10A (0.1µA) ±1.5%
Resistance 40M? (0.1µ?) ±1.2%
Capacitance 100µF (0.001nF) ±3.0%
Frequency 5MHz (0.01Hz) ±1.0%
Temperature -4 to 1400°F (1°) -20 to 750°C ±(1%+4°)
Power 2 x AAA batteries
Dimensions/Weight 5.43x2.83x1.5" (138x72x38mm)/5.4oz (153g)
