Used Extech 382100 3-Phase Power Analyzer/ Datalogger, 120V
3-Phase Power Analyzer/ Datalogger,120V

Order #: 382100-USED

Mfg #: 382100-USED

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,495.00

Used Extech 382100 3-Phase Power Analyzer/ Datalogger, 120V

3-Phase Power Analyzer/ Datalogger,120V

Order #: 382100-USED

Mfg #: 382100-USED

Loading...
Print Email Save Item Compare
$1,495.00

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee
Calibration Certificate Included 6 Month Warranty Unsurpassed Service & Support

Register to view exclusive member pricing
Availability: Call for Availability

 Ships Free Over $100

This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This item has NEW version starting at
$2,389.00
Shop now

Product Highlights

382100: 1200A 3-Phase Power Analyzer/Datalogger

Datalogging Power Analyzer (up to 30,000 sets of measurements)

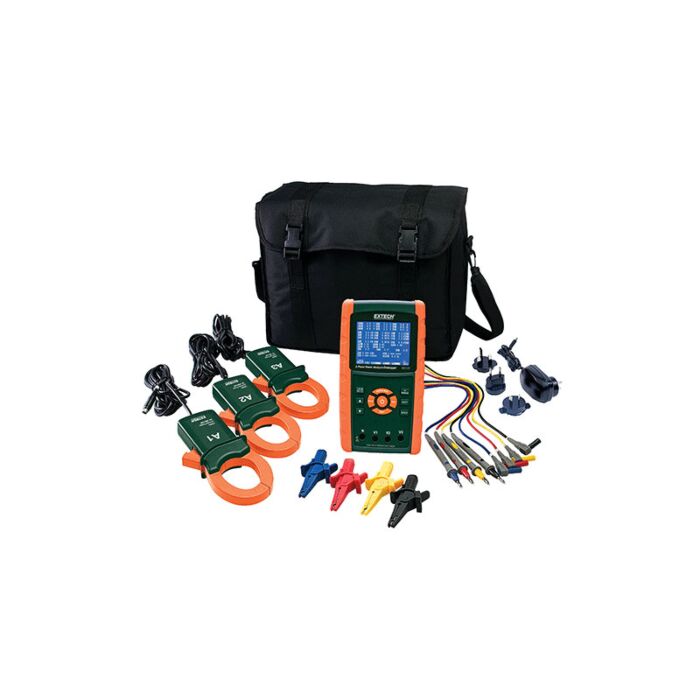

The 382100 is a 3-Phase Power Analyzer/Datalogger that saves data (up to 30,000 sets of measurements) on an SD card in Excel format for easy transfer to your PC. It provides a full system analysis with up to 35 parameters including: V (phase-to-phase), V (phase-to-ground) - A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system), and Phase Angle. Readings are displayed on a large, dot matrix, sun-readable, backlit LCD. Comes with three current clamps, four voltage leads with alligator clips, eight AA batteries, SD memory card, Universal AC adapter (100 to 240V), case, and user manual.

  • Single phase, 3-phase/3-wire or 3-phase/4-wire systems
  • Large backlighting LCD displays 35 parameters simultaneously (MW, kVAR, MVA, PF plus the voltage and current of the 3 phases)
  • Displays Active Power (kW), Apparent Power (kVA), Reactive Power (kVAR) and Power Factor
  • Current measurements to 1200A and Voltage measurements to 600V
  • MWH, MVAh, MVARh energy measurements
  • Adjustable CT ratio (1 to 600) and PT ratio (1 to 1000)
  • Automatically logs up to 30,000 sets of measurements with 2GB SD memory card
  • User-programmable sampling time from 2 to 7200 seconds
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Specifications
Specifications Range Basic Accuracy
ACV (True rms) 600.0V ±(0.5%rdg+0.5V)
ACA 1200A ±(0.5%rdg+0.5A)
Active Power (MW) 9.999MW ±(1.0%rdg+0.08KW)
Apparent Power (MVA) 9.999MVA ±(1.0%rdg+0.08KVA)
Reactive Power (MVAR) 9.999MVAR ±(1.0%rdg+0.08KVAR)
Power Factor 0.00 to 1.00 ±0.04
Frequency Range 45Hz to 65Hz ±0.1Hz
Phase -180° to +180.0° ±1°
Active Power Energy (MWh) 0.0kWh to 9.999MWHr ±(2.0%rdg+0.08KWh)
Apparent Power Energy (MVAh) 0.0KVAh to 9.999MVAh ±(2.0%rdg+0.08KVAh)
Reactive Power Energy (MVARh) 0.0kVARh to 9.999MVARh ±(2.0%rdg+0.08KVARh)
Datalogging 60,000 readings (2GB SD memory Card)
CE/CAT rating CE/CAT III-600V
Dimensions 8.9 x 2.5 x 1.3" (225 x 125 x 64mm)
Weight Meter: 2.3lbs (1049g); Clamp: 1.2lbs (522g)
Technical Resources
Extech 382100 Datasheet
