Extech 380942 True RMS 30A Mini Clamp Meter with NIST Certificate

Order # 380942-NIST | Mfg # 380942-NIST
$644.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

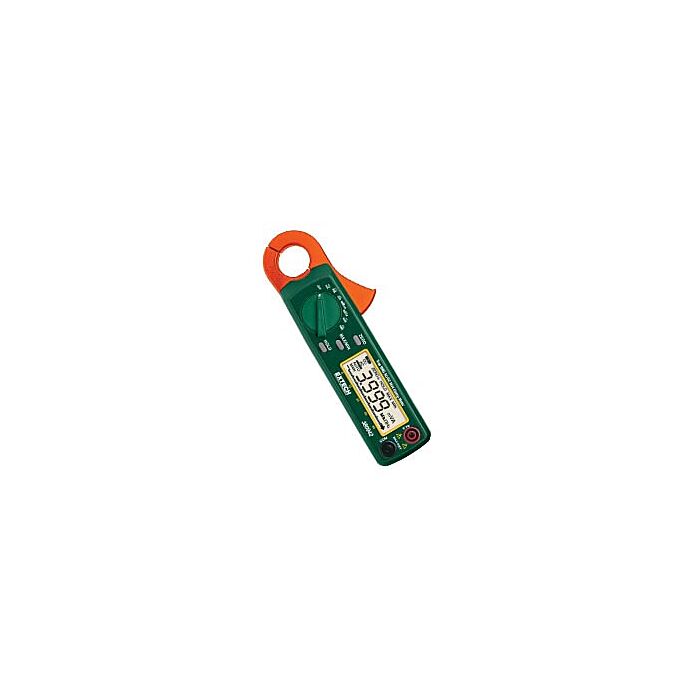

The compact Extech 380942 is a 30 Amp mini AC/DC digital clamp meter. It features a remarkable 0.1mA resolution (AC), very low-current sensitivity, and a small diameter jaw designed to reach into small areas. The 30 Amp range with 0.1mA (AC) and 1mA (DC) resolution is optimized for finding problems where very low current variances would be missed by standard clamp meters. This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as residential electrical, fleet maintenance, marine, and motorcycle repairs.

  • True RMS AC Current to 400 mA, Voltage to 600V
  • DC Current to 30A, DC Voltage to 400V
  • Measures Low Current with High Resolution--to 0.1 mA AC or 1 mA DC
  • DCV Accuracy: 1.0% + 2 Digits, DCA Accuracy: 1.5% + 3 Digits
  • One Touch "Auto Zero" for DCA Measurements
  • Data Hold, Max/Min Recall Display
  • 0.9" (23 mm) Clamp Jaw Opening
  • 4000-Count LCD plus Fast 40-Segment Analog Bargraph
  • AC Current: 400mA, 4A, 30A
  • AC Current Basic Accuracy: ±1.5%
  • AC Current Max Resolution: 0.1mA
  • AC Voltage: 400V
  • AC Voltage Basic Accuracy: ±(2.0% of reading + 5 digits)
  • AC Voltage Max Resolution: 0.1V
  • DC Current: 4A, 40A
  • DC Current Max Resolution: 0.001A
  • DC Voltage: 400V
  • DC Voltage Basic Accuracy: ±(1.0% of reading + 2 digits)
  • DC Voltage Max Resolution: 0.1V
  • Jaw Size: 0.9" (23mm), conductors up to 4/0 AWG
  • True RMS: Yes

Each Unit Includes

  • NIST Certificate
  • Two AA Batteries
  • Test leads
  • Wrist strap
  • Carrying Case
