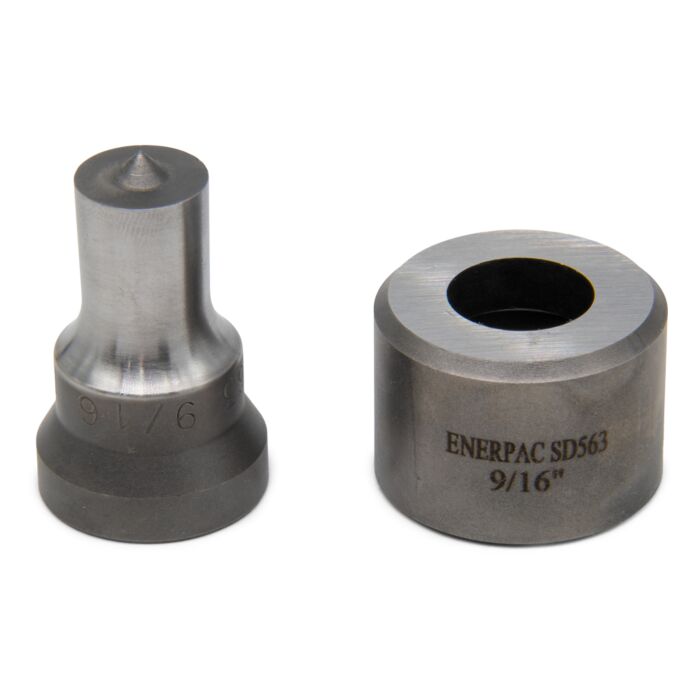

Enerpac SPD563 Punch Die Set, Circle Hole Shape

Order # SPD563 | Mfg # SPD563
$293.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

Punch Die Set, Circle Hole Shape

Technical Resources

Specifications

Hole Shape Circle
Imperial Hole Size (in) 0.56
Imperial Bolt Size (in) 1/2"
Metric Hole Size (mm) 14,3
Mild A7 Maximum Allowable Material Thickness To Be Punched (in) 0.50
Boiler Plate Maximum Allowable Material Thickness To Be Punched (in) 0.50
Structura lA36 Maximum Allowable Material Thickness To Be Punched (in) 0.50
Struct Corten ASTMA242 Maximum Allowable Material Thickness To Be Punched (in) 0.44
Cold Rolled C1018 Maximum Allowable Material Thickness To Be Punched (in) 0.50
Hot Rolled C1050 Maximum Allowable Material Thickness To Be Punched (in) 0.44
Hot Rolled C1095 Maximum Allowable Material Thickness To Be Punched (in) 0.25
Hot Rolled C1095 Annealed Maximum Allowable Material Thickness To Be Punched (in) 0.38
Stainless Annealed Maximum Allowable Material Thickness To Be Punched (in) 0.44
Stainless 304 Hot Rolled Maximum Allowable Material Thickness To Be Punched (in) 0.44
Stainless 316 Cold Rolled Maximum Allowable Material Thickness To Be Punched (in) 0.44
Compatible Products SP35, SP35S, SP35SP, MSP351, MSP351PE, STP35H, STP35A
