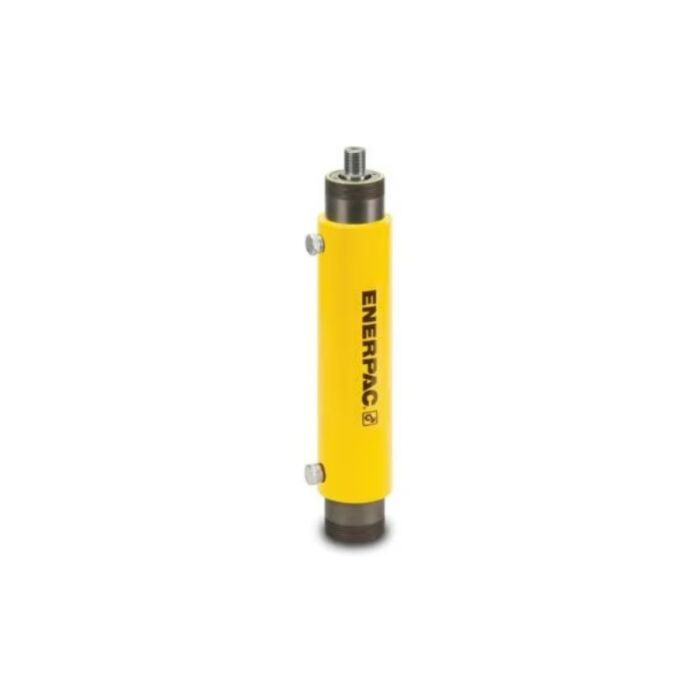

Enerpac RD96 Double-Acting, General Purpose Hydraulic Cylinder, 9 ton

Order # RD96 | Mfg # RD96
$1,856.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

9 ton Capacity, 6.13 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder

  • Designed for long life, the best choice for production applications
  • Unique mounting configurations simplify fixturing
  • Baked enamel finish for increased corrosion resistance
  • Double-acting operation develops force in both directions, providing maximum versatility
  • Plunger wiper reduces contamination, extending cylinder life

Technical Resources

Enerpac RD Series Datasheet

Specifications

Maximum Operating Pressure (psi) 10,000
Capacity Class (tonnage) 9
Maximum Cylinder Capacity Advance (short tons) 9
Maximum Cylinder Capacity Retract (short tons) 5
Stroke (in) 6.13
Collapsed Height A (in) 13.78
Extended Height B (in) 19.91
Return Type Double-Acting, Hydraulic Return
Plunger Type Solid
Material Steel
Cylinder Effective Area Advance (in2) 1.77
Cylinder Effective Area Retract (in2) 0.98
Oil Capacity Advance (in3) 10.82
Oil Capacity Retract (in3) 6.01
Cylinder Capacity Advance at 5000 psi (lbs) 9000
Cylinder Capacity Retract at 5000 psi (lbs) 4910
Surface Treatment Paint
Coupler -
Weight (lbs) 14
