Endevco 7250A-2 FOR RENT

Endevco 7250A-2 for Rent, Piezoelectric Accelerometer

Order # 7250A-2-RENT2

Mfg # 7250A-2

call-regular 800-828-1470
$0.00
  • Overview
  • Technical Resources

Endevco 7250A-2 for Rent, Piezoelectric Accelerometer

Order # 7250A-2-RENT2 | Mfg # 7250A-2

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

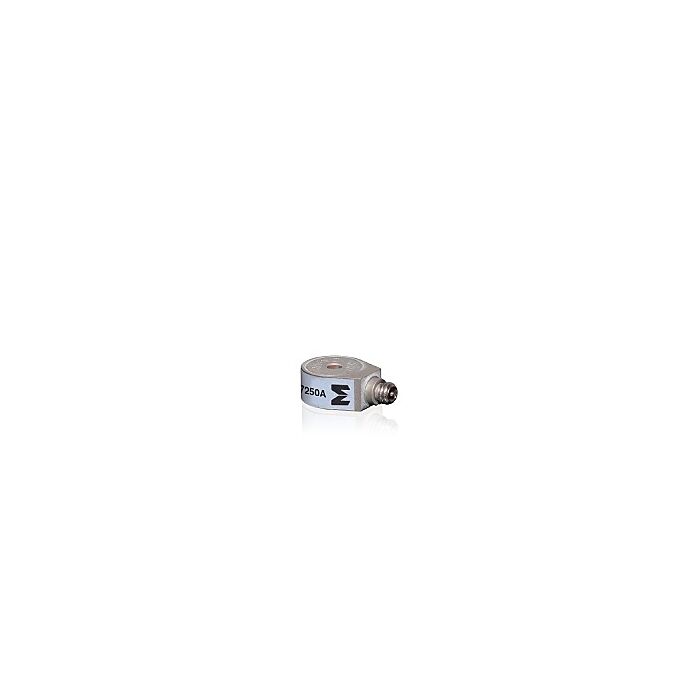

7250A Miniature IEPE Accelerometer

Part Number 7250A-2

2 mV/g, ±2,500 g, 3 Hz to 20 kHz, -67ËšF to +257ËšF, isolated, thru-hole mount, side connector, 1.8 grams

Features
  • Low impedance output
  • Hermetically sealed
  • 360° cable orientation
  • Lightweight (1.8 gm)
  • Flight test applications
PARAMETER VALUE (ENGLISH | METRIC)
Output type Voltage (IEPE)
Sensitivity 2 mV/g | 0.20 mV/(m/sec2)
Max Measurement Range 2500 g pk | 24525 m/sec2 pk
Max Frequency (±5%) 10000 Hz | 10000 Hz
Weight 0.081 oz | 2.3 gm
Number of Axis 1
Replacement (-R) No

Technical Resources

Endevco Isotron Accelerometer Model 7250A -2, -10 Datasheet
