Endevco 2225 For Rent

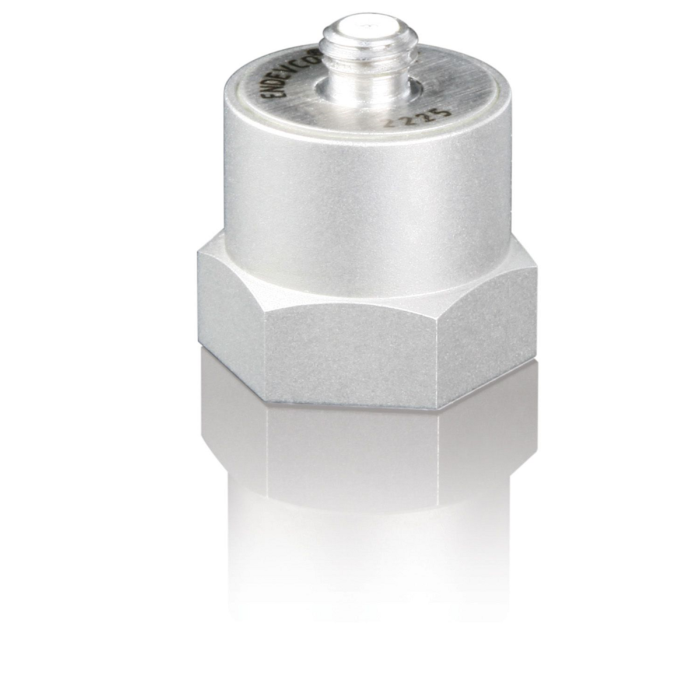

Endevco 2225 for Rent, Accelerometer

Order # 2225-RENT2

Mfg # 2225

call-regular 800-828-1470
$0.00
  • Overview
  • Technical Resources

Endevco 2225 for Rent, Accelerometer

Order # 2225-RENT2 | Mfg # 2225

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Description

The 2225 is a light weight piezoelectric accelerometer designed specifically for measuring high-g shock on structures and test articles. The Model 2225 features a 10-32 threaded hole for additional mounting integrity needed during high-g shock. It also has Endevco's Piezite® Type P-8 crystal element, operating in annular shear mode. These specially designed crystals exhibit low base strain sensitivity, high resonance frequency and excellent output stability over time.The accelerometer is a self-generating device that requires no external power source for operation.

FEATURES:
  • Requires no external power
  • Annular shear
  • High-g shock
  • Rugged
  • Industry standard

    SPECIFICATIONS:
  • Charge Sensitivity: Typical 0.75, Minimum 0.60 pC/g
  • Capacitance approx: 800 pF
  • Resonance Frequency: 100 kHz (minor resonance 30 -80 kHz)
  • Amplitude Response: 4 to 10000 Hz ±5% / 1 to 12000 Hz ±1dB
