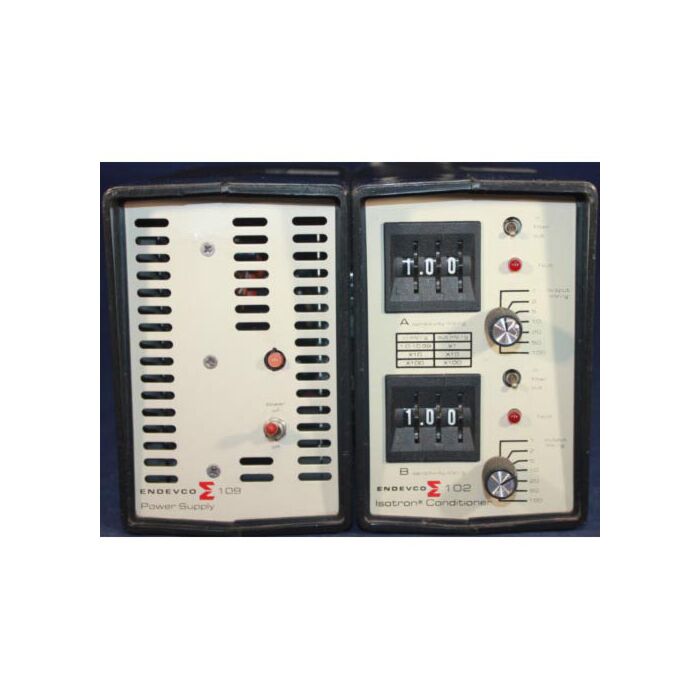

Endevco 109 for Rent, Power Supply, 24VDC <20mA, +/-15V/<30mA
Power Supply 24VDC <20mA, +/-15V/<30mA

Order #: 109-RENT2

Mfg #: 109

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Endevco 109 for Rent, Power Supply, 24VDC <20mA, +/-15V/<30mA

Power Supply 24VDC <20mA, +/-15V/<30mA

Order #: 109-RENT2

Mfg #: 109

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price
Availability: Call for Availability

Endevco 109 Highlights

  • Input type: Single-ended with one side connected to the circuit common and case
  • Maximum Input: 30,000 pC peak without overload charge
  • Overload Recovery: Negligible for 50 msec square pulse whose amplitude does not exceed
  • Input Resistance: 10 M ohms minimum
  • Input Capacitance: 30,000 pF maximum
  • Max Output Voltage: 10 V peak
  • Max Output Current: 3 mA
  • Output Offset Voltage: 15 mV max
  • Output Protection: Short circuit to ground
  • Model 109 Power Supply
  • Standard Voltage: 105 to 132 VAC
  • Frequency: 47 to 63 Hz
  • Power Consumption: 25 Watts
  • Standard Fuse: 1/2 ampere
  • Output Voltage: +24, +15, -15 VDC at 400 mA each
  • Line Regulation: ±0.2% for 10% line change
  • Load Regulation: ±0.3% for 50% load change
  • Output Ripple: 6 mV peak-to-peak
  • Protection: Short circuit and overload
