Product Highlights

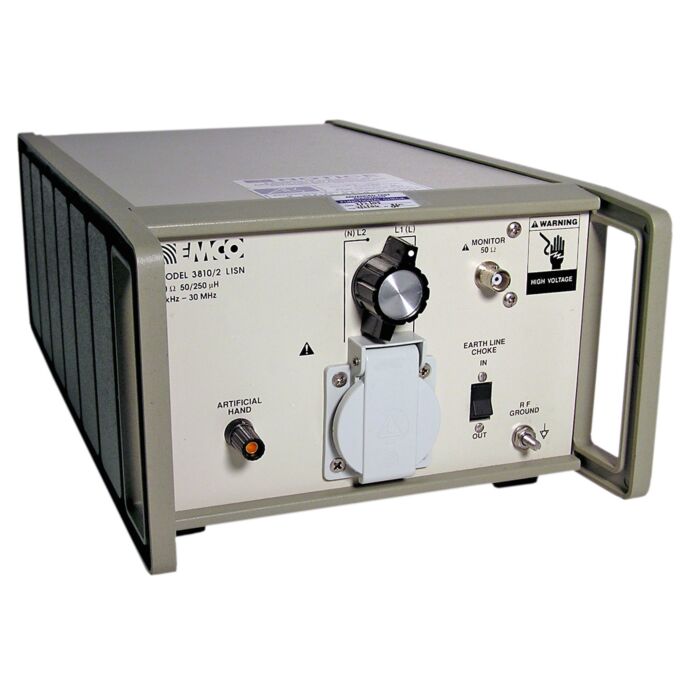

The EMCO (ETS-Lindgren) 3810-2 LISN is a multi-line low pass filter network used for conducted emissions measurement. They are placed between the power mains and the Equipment Under Test (EUT) to stabilize line impedance, provide a 50 Ω RF connection, and eliminate unwanted RF signals from the line supply. In addition, LISNs can be used to predict radiated emissions for diagnostic and pre-compliance testing. The Model 3810/2 is designed and tested in accordance with IEC Publication 1010, further indication of ETS-Lindgren's commitment to safety. The 3810/2 covers 9 kHz to 30 MHz frequency range and are designed to be used with a signal analyzer for making FCC 15, VDE 0871, VDE 0875, and EN 55022 conformance measurements. An Earth Line Choke isolates the EUT from RF ground while maintaining a safety ground.
- Frequency range: 9 kHz - 30 MHz
- (VDE 0876 specified curve +/-20%)
- Network inductance: 50 mH / 250 mH
- Network impedance: 50 ohm
- Current rating: 10 amps
- Maximum AC voltage: 125 VAC 60 Hz
- Outlet receptacle: NEMA
- Input connector IEC-320 type 3-wire inlet.
