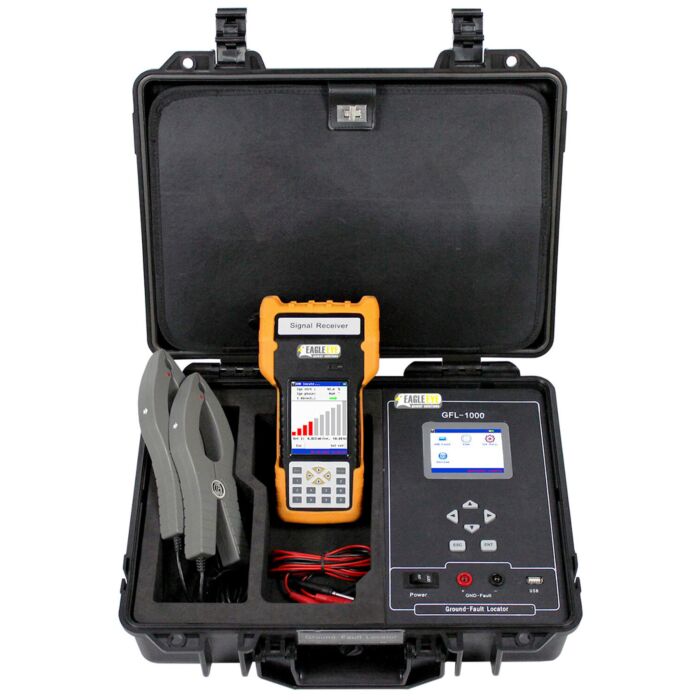

Eagle Eye Power Solutions GFL-1000 for Rent, Ground Fault Locator/Insulation Tester with Software

Product Highlights

• Two functions in one: Insulation tester and ground fault locator
• Test and record insulation status of facilities
• Powerful management DataView Software on PC for data analysis
• No disconnection of the electrical installation - ground fault location is carried out during operation
• Fast locations for ground fault even when cables are buried
• Signal-generator with adjustable frequency and voltage
• Reflects aging status of facilities for further reparation
• Reduced maintenance and repair costs
• Compact & rugged design
• Measuring range V testing: 0.00-1000V, Insulation resistance: 20kO-500MO (250V)
• 50kohms-1000Mohms (500V) 100 kohms-2000Mohms (1000V)
• Min resolution Voltage: 0.1V Insulation R: 0.01 Mohms
• Accuracy Voltage: 1%rdg±8dgt
• Insulation R: 0.5 Mohm-100 Mohm 5 rdg±6dgt?100 MO: 10%rdg±6dgt
• Output signal voltage: 0-1000V±10% Frequency: 1-1000Hz
• Power consumption =4 hours(continuous operation)
• Memory 32k×8bit Non Volatile SRAM
• Displaying screen 128×64 pixels LCD
• Communication USB interface
• Dimension 14.5"L x 11.4"W x 9.8"H
• Humidity 80%R.H
• Testing accuracy =0.25Mohm
• Sensor aperture 2.3"
• Battery Li-ion
• Weight 15.4 lbs.
• Temperature 23°F to 104°F
• Power voltage DC 8.4V
• Jaw opening 2.6"

Each Unit Includes

• GFL-1000 Main Body Signal Generator
• Power Adapter
• Two (2) Signal Testing Leads
• Two (2) Alligator Clips
• Punctuation Clip
• Signal Receiver
• Two (2) Dual-Range Current Detector
• Two (2) Batteries
• Battery Charger
• Carrying Case
