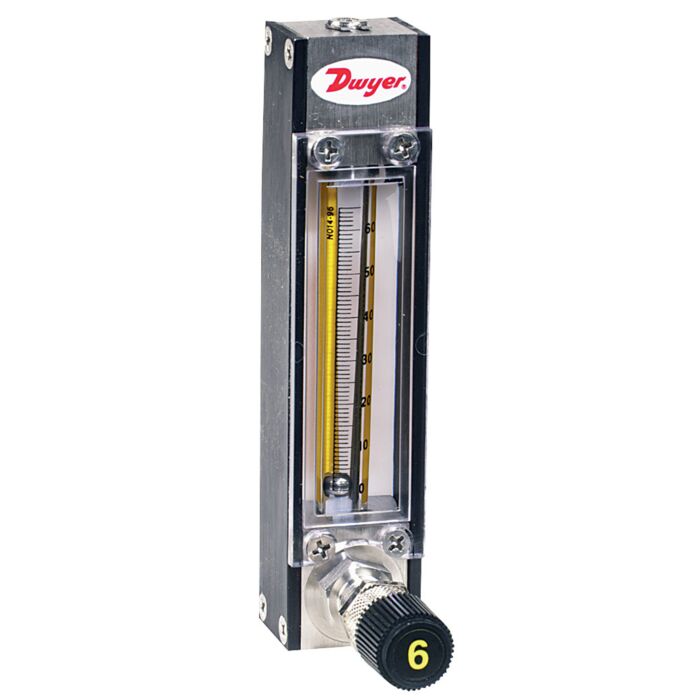

Dwyer Instruments VA10418
Variable Area Glass Flowmeter Maximum flow rate 25.5 SCFH

Order #: VA10418

Mfg #: VA10418

Questions about availability or need help? Contact Us:

(800) 633-0561

Dwyer Instruments VA10418

Variable Area Glass Flowmeter Maximum flow rate 25.5 SCFH

Order #: VA10418

Mfg #: VA10418

Accurately measure flow rates of air, water, and other commonly used gases with the Series VA Variable Area Glass Flowmeters. Flowmeters are designed with an easy-to-read universal mm scale and supplied with a correlation chart containing calibration data for air and water. Correlation data for other gases and liquids are available. Permanently fused ceramic scale with vertical locator line reduces parallax and eye fatigue. Thick polycarbonate front shield protects tube from breakage and also serves as a magnifying lens to enhance reading resolution. Glass flowmeters are suitable for metering carrier gases, liquid and gas measurement in pilot plants, laboratories, process flow and level indicating. Units are equipped with a standard 6-turn needle valve for flow rate control. High precision metering valves with non-rising stems (sold separately) are available for high sensitivity control and resolution - particularly suited for very low flow rates. Flowmeters are shipped completely assembled and ready for panel mounting. Use an optional acrylic tripod base to convert to self-standing bench mounting. Note: Calibration data is provided in each unit and is unique to each scale.
Availability:
This item is no longer available. Please contact Transcat Customer Service for assistance with alternative product suggestions to meet your exact needs.
Tariff fees or manufacture imposed surcharges may be applicable.

Product Highlights

  • SS float, max. flow rate 25.5 SCFH (12058 ml/min) air, 5.77 GPH (364 ml/min) water
