The Series MSX Magnesense® Differential Pressure Transmitter combines the stability and versatility of the original Series MS2 Magnesense® II transmitter for use in building control applications. The MSX simplifies the ordering process to deliver the desired configuration, which reduces product setup time. Pressure ranges are available in Pa, mm w.c., and in w.c. All pressure ranges can be configured in unidirectional or bidirectional modes, providing a total of 32 ranges. The MSX transmitter can provide a linear pressure output or a linear velocity output with the square root extraction from the transmitter. Additional parameters have been included to expand the square root capability to calculate flow. Dual voltage and milliamp output signals can be used to provide both control and equipment output signal verification.

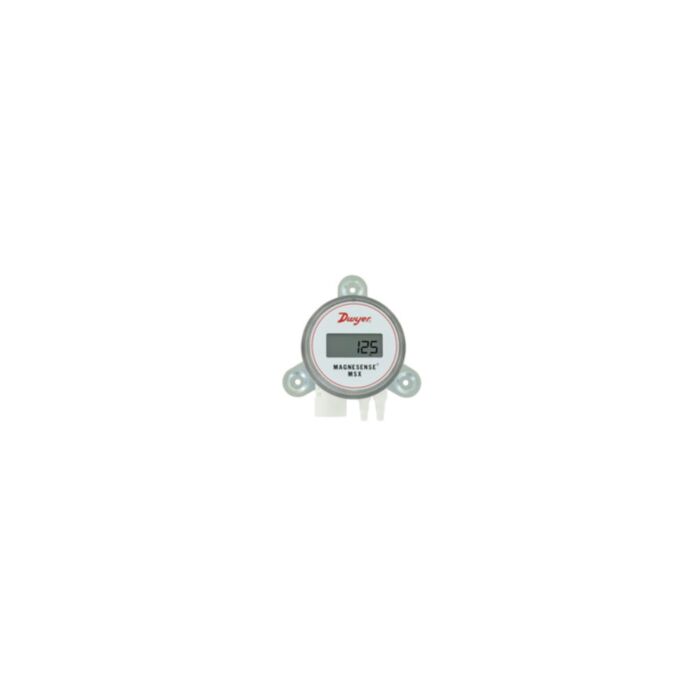

Differential pressure transmitter, current/voltage, range (1, 2, 3, 5" wc) LCD
- Read LCD values easier with rotatable 180° display
- Quick and easy wiring via the optional toolless terminal block
- Add safety to variety of applications with UL94 V-0 and plenum ratings
- Accuracy: ± 1 %
- Accuracy Detail: ± 1% FSO
- Applications: Building and Maintenance, HVAC
- Burst Pressure: 6 psi Maximum
- Compliance: CE
- Display Type: LCD
- Electrical Connection: 1/2 in NPS female Conduit with Screw Terminal block
- Electrical Output: 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc
- Enclosure Ratings: IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)
- Long Term Stability: ± 1% FSO/year
- Loop Resistance: Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.
- Material Construction Option: N/A
- Materials, Wetted: Consult Factory
- Measurement Pressure Type: Differential
- Measurement Pressure, Max: 5 inH²O
- Measurement Pressure, Min: 0 inH²O
- Media Compatibility: Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases
- Mounting Note: Not Position Sensitive
- Mounting Orientation: Wall Mount
- Number of Digits: 4
- Number of Wires: 2, 3
- Operating Temperature, Max: 70 °C
- Operating Temperature, Min: -20 °C
- Output Detail: Field Selectable
- Output Signal: Current, Voltage
- Power Consumption: max 21 mA
- Process Connection Size: 1/8 in, 3/16 in, 1/4 in
- Process Connection Type: Stepped Barb Fitting
- Proof Pressure: Up to 6 psi
- Response Time: 3 s
- Response Time Note: Instantaneous (default) or 3 s (selectable)
- Span Adjustment: Push Button
- Supply Power Type: AC/DC
- Supply Voltage: 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac
- Weight: 230 g
- Wire Gauge: 26 to 16 AWG
- Zero Setting Adjustable Range: Digital push-button
Application
- Filter monitoring in air handler units
- Building pressure in pharmaceutical/semiconductor clean rooms
- Duct static pressure in commercial buildings
- Air velocity/flow in VAV systems
Each Unit Includes
- 1 - Differential Pressure Transmitter(MSX-W12-IN-LCD)
