The Series DHC Digihelic® Differential Pressure Controller is a 3-in-1 instrument possessing a digital display gage, control relay switches, and a transmitter with both current and voltage outputs. Combining these 3 features allows the reduction of several instruments with one product, saving inventory, installation time, and cost. The Series DHC Digihelic® differential pressure controller is the ideal instrument for pressure, velocity, and volumetric flow applications reading in several commonly used engineering units with optional unidirectional or bidirectional ranges. These units achieve a 1.5% or better accuracy on extremely low ranges, and 0.5% accuracy for ranges at or above 1 in w.c. Calibration can be performed in the field, making maintaining its accuracy more manageble. Additionally, the Series DHC Digihelic® differential pressure controller includes 2 SPDT control relays with adjustable deadbands. Programming the unit is simple using the built-in menu. With scalable 4-20 mA, selectable voltage process outputs, and selectable Modbus® or BACnet communication, this controller can easily fit into your application.

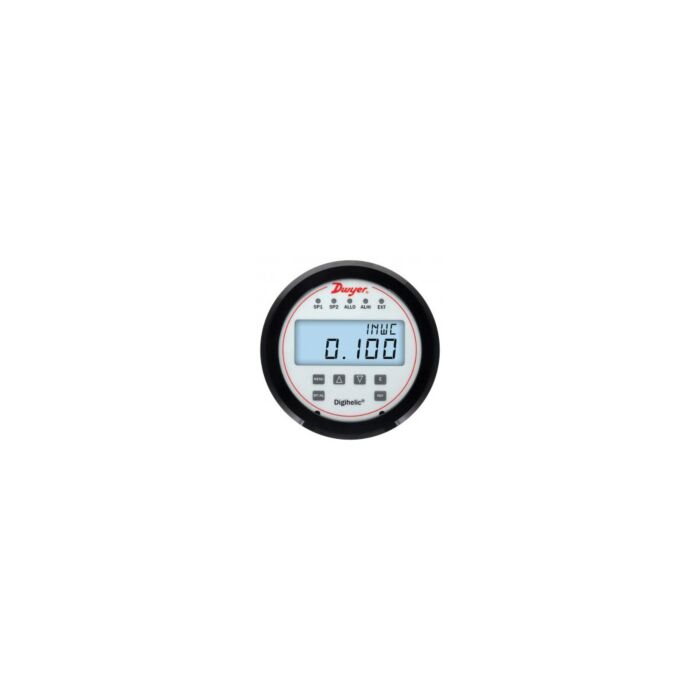

Differential pressure controller, range 2.5 in w.c.
- One instrument saves inventory, installation time, and money with its measurement versatility and innovative 3-in-1 design
- Measurement precision via full-scale accuracy of 1.5% or better on extremely low ranges, and 0.5% for ranges at or above 1 in w.c.
- Safe and secure with security menu programming
- Simplified field upgrade to DHC pressure controller with optional stainless steel bezel
- Accuracy: ± 0.5 %
- Accuracy Detail: ± 0.5% FSO for all ranges, except 0.5 in w.c. @ ± 1% FSO, and ranges at or below ± 0.25 in w.c. @ ± 1.5% FSO
- Applications: Fluid Measurement and Control
- Baud Rate: 9600 to 115200
- Burst Pressure: 6 psi Maximum
- Compliance: BTL, CE
- Data Interface: BACnet MS/TP, Modbus RTU
- Device Load: 1/8 Unit
- Display Note: Backlit LCD display, LED setpoint indicators
- Display Type: LCD
- Electrical Connection: Sub-D Male Miniature Connector
- Enclosure Ratings: IP66, NEMA Type 4X
- Height: 1.9 in
- Materials: Polycarbonate
- Materials, Wetted: Consult Factory
- Measurement Pressure Type: Differential
- Measurement Pressure, Max: 2.5, 2.5 inH²O
- Measurement Pressure, Min: 0, 0 inH²O
- Media Compatibility: Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Corrosive Dry Gases
- Mounting Orientation: None
- Number of Wires: 4
- Operating Temperature, Max: 158 °F
- Operating Temperature, Min: -4 °F
- Outer Diameter: 5 in
- Output Detail: 4 to 20 mA; 0 to 10 V, 0 to 5 V, 1 to 5 V, 2 to 10 V
- Output Signal: Current, Voltage
- Power Consumption: 3 VA
- Process Connection Note: 1/8" female NPT ports on side and back
- Process Connection Size: 1/8 in
- Process Connection Type: NPT Female
- Response Time: 400 ms
- Response Time Note: 400 ms (damping set to 0)
- Set Point Adjustment: Menu Configurable
- Stability: <± 1% FSO/year
- Supply Power Note: 12-28 VDC or 12-28 VAC 50 to 400 Hz
- Supply Power Type: AC/DC
- Supply Voltage: 12 to 28 Vac/Vdc
- Switch Note: 2 SPDT relays, 1 A @ 30 VAC/VDC
- Switch Rating: 1 A @ 30 Vac/Vdc
- Switch Type: (2) SPDT
- Thermal Effects: 0.02% FS/°F
- Weight: 8.8 oz
- Zero Setting Adjustable Range: Accessible via Menus
Application
- SCFM duct flow
- Filter status
- Duct or building static pressure
- Damper and fan control
Each Unit Includes
- 1 - Differential pressure controller(DHC-006)
