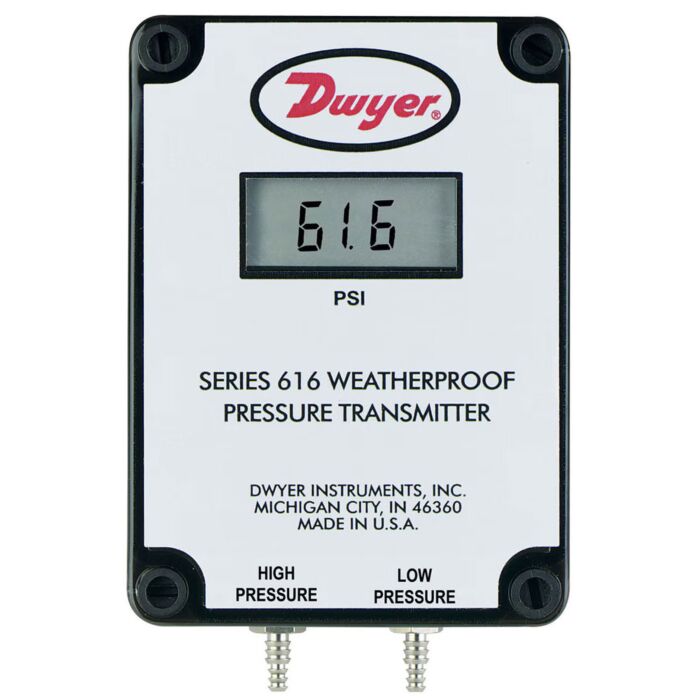

Positive, negative and differential pressures can be measured within a full span accuracy of ±0.25 with the Series 616W Differential Pressure Transmitter. Units are enclosed in a polycarbonate case, rated NEMA 4X (IP66) and operate by sensing the pressure of air and compatible gases then sending a standard 4-20 mA output signal. Design enables operation in 2-wire current loops. A wide range of models are available factory calibrated to specific ranges. The span and zero controls are for use when checking calibration. They are not intended for re-ranging to a significantly different span. The LCD display allows local indication of pressure.
0 to 10 inH2O, Differential Pressure, Max. Pressure 10 psig
- NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists
- Easy to read LCD display provides immediate local alerts allowing corrective action to be taken quicker to eliminate the problem from becoming widespread
- Zero and span controls provides easy calibration checks and shorter installation time to get device running and monitoring
- Accuracy: ± 0.25 %
- Accuracy Detail: ± 0.25% FS @ 77°F (25°C), display accuracy ± 0.5%
- Compliance: CE
- Display Type: LCD
- Electrical Connection: Screw Terminal
- Electrical Output: 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc
- Enclosure Ratings: IP66, NEMA Type 4X
- Long Term Stability: ± 1% FS/year
- Loop Resistance: Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.
- Materials, Wetted: Consult Factory
- Measurement Pressure Type: Differential
- Measurement Pressure, Max: 10 inH²O
- Measurement Pressure, Min: 0 inH²O
- Media Compatibility: Air, Argon, Carbon dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases
- Mounting Note: Not Position Sensitive
- Number of Wires: 2, 3
- Operating Temperature, Max: 70 °C
- Operating Temperature, Min: -20 °C
- Output Detail: Field Selectable
- Output Signal: Current, Voltage
- Power Consumption: max 21 mA
- Process Connection Note: Barbed, dual size to fit 1/8" and 3/16" (3.12 and 4.76 mm) ID rubber or vinyl tubing
- Process Connection Size: 1/8 in, 3/16 in
- Process Connection Type: Stepped Barb Fitting
- Proof Pressure: Up to 4.5 psi
- Span Adjustment: Push Button
- Supply Power Type: AC/DC
- Supply Voltage: 2-Wire: 10 to 36 Vdc, 3-Wire: 17 to 36 Vdc/21.6 to 33 Vac
- Weight: 269 g
- Wire Gauge: 26 to 16 AWG
- Zero Setting Adjustable Range: Push button
Applications
- Dust collection
- Outdoor HVAC
- Roof-top equipment
Each Unit Includes
- 1 - Differential Pressure Transmitter (616W-3-LCD)
