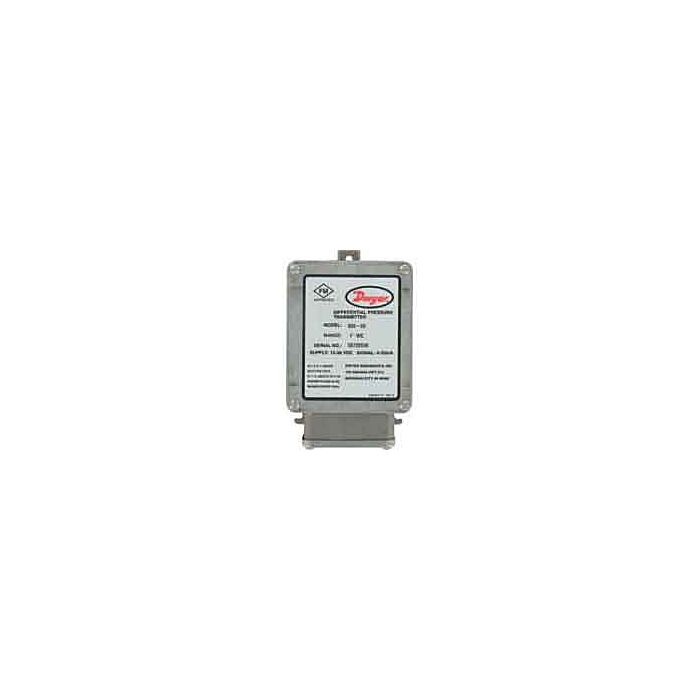

Dwyer Instruments 608-03

Order # 608-03 | Mfg # 608-03
$1,192.00

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

  • Service: Clean/dry air and compatible combustible gases (see Agency Approvals for FM ratings).
  • Wetted Materials: Consult factory.
  • Accuracy: ±0.5% or ±0.25% full scale.
  • Stability: ±0.5% F.S./yr.
  • Pressure Limits: 100 psig (6.89 bar); 15 psid (1.03 bar).
  • Temperature Limits: -20 to 185°F (-28 to 85°C).
  • Compensated Temperature Range: 0 to 160°F (-18 to 71°C).
  • Thermal Effect: 0.5% Accuracy: ±0.02% F.S./°F; 0.25% Accuracy: ±0.01% F.S./°F.
  • Power Requirements: 12 to 36 VDC (2-wire).
  • Output Signal: 4 to 20 mA DC.
  • Zero and Span Adjustments: Potentiometers for zero and span.
  • Response Time: 250 ms.
  • Loop Resistance: DC: 0-1045 ohms maximum.
  • Current Consumption: 4-20 mA.
  • Electrical Connections: Screw terminals: two 1/2" female NPT conduit.
  • Process Connections: Two 1/4" female NPT.
  • Enclosure Rating: NEMA 4X (IP65).
  • Mounting Orientation: Not position sensitive.
  • Weight: 2 lb (0.9 kg).
  • Agency Approvals: FM approved intrinsically safe for use in Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups E, F, G; Class III, Div. 1 when wire with approved intrinsically safe barrier. Entity parameters: Vmax=36 VDC; Imax=250 mA; C=12 nF; L=0 mH
