Dwyer Instruments 605-0
Magnehelic Diff.Press.Xmitter, 0-.50"w.c
Order #: 605-0
Mfg #: 605-0

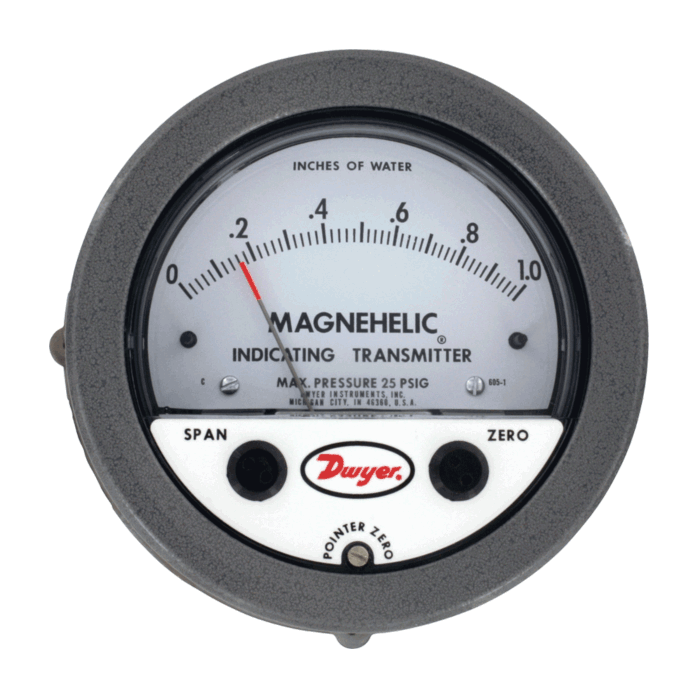

The Series 605 Magnehelic® Indicating Transmitter provides for both visual monitoring and electronic control of very low differential pressure. The Series 605 is ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when trouble shooting the system. The easily read dial gage is complimented by the two-wire, 4-20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gage mechanical design and Series 600 transmitter technology. The two-wire design with terminal strip on the rear simplifies connection in any 4-20 mA control loop powered by a 10-35 VDC supply.
Only need this item for a short time?
Questions about this product?
- range 0-.50" w.c.
- max. pressure 25 psi (1.7 bar)
- ±2% electrical accuracy
- ±3% mechanical accuracy
