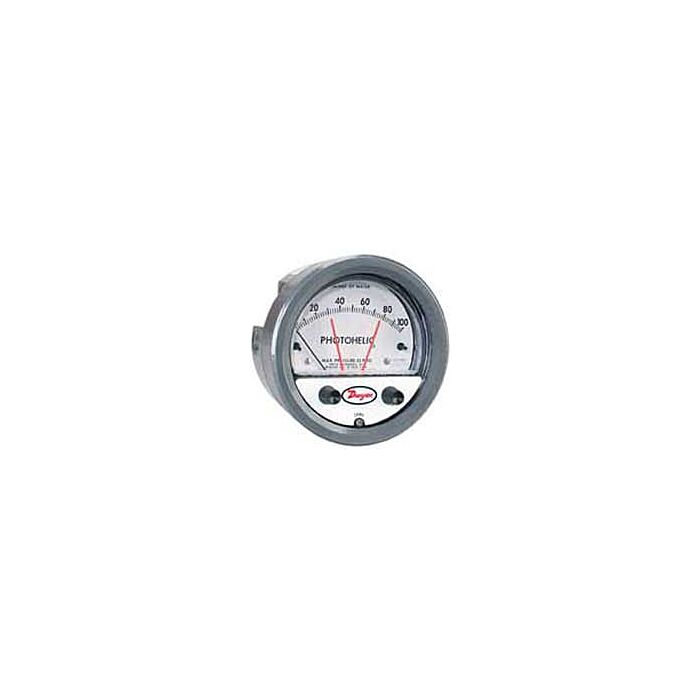

Dwyer Instruments 3002MR

Product Highlights

• Switch Type: Each setpoint has 1 Form C relay (SPDT)
• Relay Contacts: (resistive load) 1 Form C rated 1.0A @ 30 VDC, 0.3A @ 110 VDC or 0.5A @ 125 VAC. Gold over clad silver - suitable for dry circuits
• Electrical Connections: 18" (46 cm) cable assembly with 8 conductors
• Power Requirements: 24 VDC, regulated ±10%
• Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations
• Set Point Adjustment: Adjustable knobs on face
• Agency Approvals: CE

Each Unit Includes

• Mounting ring, snap ring
• (4) 6-32 x 1-1/4" RH machine screws
• 18" (45 cm) cable assembly (panel mounting)
• (2) 3/16" tubing to 1/8" NPT adapters (3) 6-32 x 5/16" RH machine screws
• (2) 1/8" NPT pipe plugs (surface mounting)
