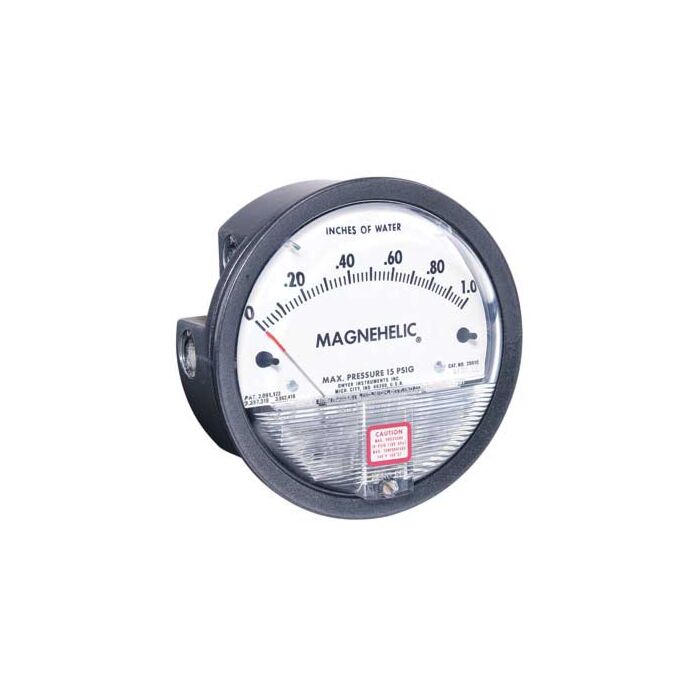

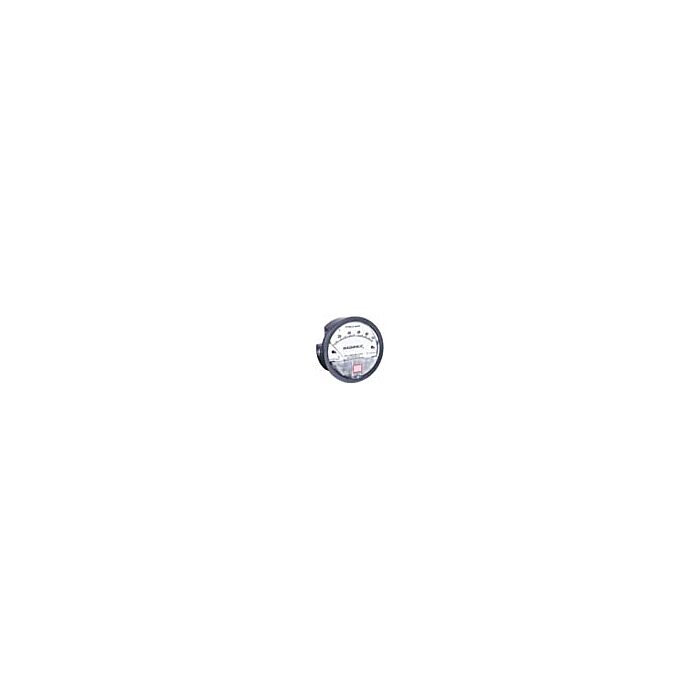

Dwyer Instruments 2005D

Product Highlights

• Accurate within 2%
• Service: Air and non-combustible, compatible gases
• Die cast aluminum case and bezel, with acrylic cover
• Pressure Limits: -20" Hg. to 15 psig. (-0.677 bar to 1.034 bar); MP option; 35 psig (2.41 bar), HP option; 80 psig (5.52 bar)
• Overpressure: Relief plug opens at approximately 25 psig (1.72 bar), standard gages only
• Temperature Limits: 20 to 140°F. (-6.67 to 60°C)
• Size: 4" (101.6 mm) Diameter dial face
• Mounting Orientation: Diaphragm in vertical position
• Process Connections: 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back
• Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g)

Each Unit Includes

• Two 1/8" NPT plugs for duplicate pressure taps
• Two 1/8" pipe thread to rubber tubing adapters
• Three flush mounting adapters with screws
