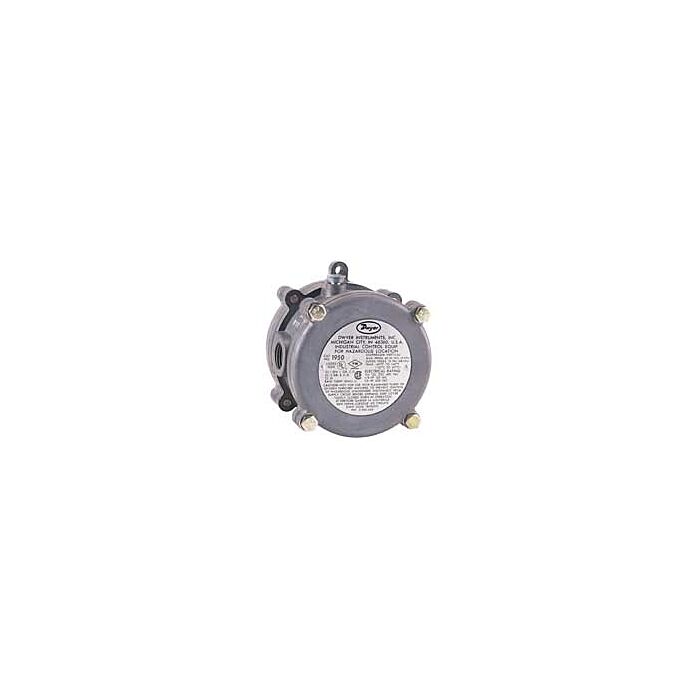

Dwyer Instruments 1950-5-2F

Product Highlights

• Integral explosion-proof and weatherproof housing
• Service: Air and non-combustible, compatible gases
• Temperature Limits: -40 to 140°F (-40 to 60°C
• Pressure Limits: Continuous: 1950's - 45" w.c. (0.11 bar); Surge: 10 psi (0.69 bar)
• Enclosure Rating: IP54, NEMA 3, 7 and 9
• Switch Type: Single-pole double-throw (SPDT)
• Electrical Rating: 15 A at 125, 250, 480 VAC, 60 Hz. Resistive 1/8 HP at 125 VAC, 1/4 HP at 250 VAC, 60 Hz
• Electrical Connections: 3 screw type, common, normally open and normally closed
• Process Connections: 1/8" female NPT
• Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations
• Set Point Adjustment: Screw type on top of housing.
• Weight: 3.25 lb (1.5 kg)
• Agency Approvals: CE, UL, CSA, FM.
