Dracal VCP-RTD200

Order # VCP-RTD200 | Mfg # 603046
$214.99
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

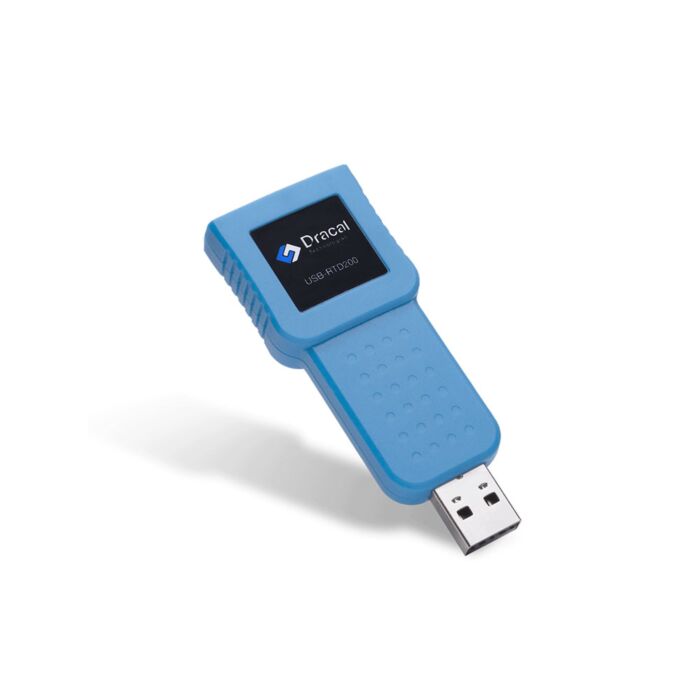

RTD200: 2/3 Wire RTD sensor to USB adapter, with connector – with VCP mode

This USB interface for RTD sensors allows for precise temperature measurement. It supports a wide variety of 2 and 3-wire 100 ohms RTDs, such as Pt100 sensor probes. Sensors connect using a convenient standard mini RTD connector and the compact USB-key form factor simplifies integration even in space-constrained applications.

  • Temperature
    • Temperature range: -200°C to 800°C[2]
    • ADC resolution: 18-bit
    • Resolution: Typically 0.02°C
    • Precision: ±0.06°C or better[3]
    • Drift: <1%/year
    • Sensing Element Type: 2 or 3 wire RTD 100 Ω sensors (Pt100 type)
    • Connection: Polarized 3-pin standard[1] miniature receptacle
  • Miscellaneous
    • Enclosure operating temperature: -20°C to 70°C
    • Enclosure: ABS Plastic, USB-key form factor
    • Communication: USB 2.0

    • Technical Resources

    Dracal RTD200 Datasheet
