Order #: L-3320
Mfg #: 3021003320
- Large sample vial tray capacity
- Accommodates high and low vial heights
- Multi injection mode supporting full, partial and micro pickup volumes
- Superior cleaning to avoid cross contamination

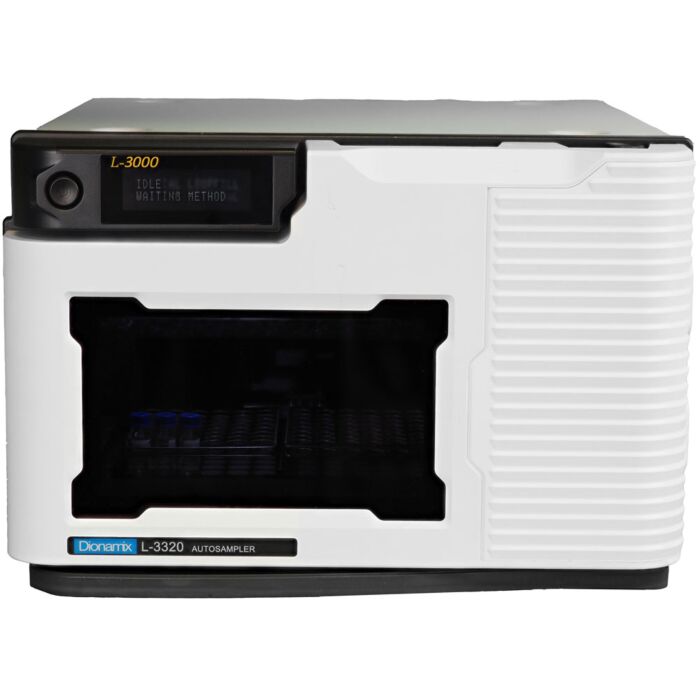

The Dionamix L-3320 Autosampler is designed to significantly speed up analysis of routine sampling. The L-3320 comes standard with 2 x 48 vial sample trays with ability to optionally expand up to 2 x 96 or 2 x 384 sample trays in addition to accommodating standard high or low plate or vial. The Autosampler has a Multi Injection Mode capability supporting full loop, partial loop and micro pick up without changing any hardware.
Critical to sample analysis is cleanliness and avoiding cross contamination, the design of the Dionamix L-3320 Autosampler achieve this by employing a double wash system, one for cleaning the outer needle and pickup surfaces and a second, separate wash for the needle inner parts.
Maintenance is also key to achieving quality test results and ensuring the maximum lifespan out of the Autosampler. With the L-3320, all maintenance parts are easily accessed via the front of the instrument, no complex disassembly required.
With DataApex Clarity workstation, Dinamix Autosampler can work with most major brands in the market.
Dionamix is open for Autosampler OEM business.
|Sample Capacity||2 standard 48-vial tray or2 standard 96-well or 2 standard 384-well|
|Loop Volume||Standard 100 µL; 10 µL, 20 µL and 50 µL optional|
|Syringe Volume||Standard 250 µL, 100 µL optional|
|Injection Mode||Full Loop, partial loopfill and µL pickup mode|
|Reproducibility||Full loop injection: RSD ≤ 0.3%||Partial loopfill injection: RSD ≤ 0.5%||µL Pickup injection: RSD ≤ 1%|
|Cross Contamination||< 0.02% (after programmed needle wash)|
|Max Injection Volume||Full loop injection= loop volume||Partial loopfill injection = 1/2 of loop volume||µL Pickup injection = (loop volume -3 x needle volume)/2|
|Weight||L-3320 17 kg (37.5 lbs)|
|Dimension (L x W x H)||453 x 359 x 244 mm||17.9 x 14.2 x 9.6 inches|
|Voltage||110 VAC rms - 240 VAC rms|
|Frequency||50 Hz - 60 Hz|
|Power||110 W max|
|Operating Temperature||15°C - 35°C (with less than 2°C/ hr temperature variation)||59 °F - 95°F|
|Operating Humidity||20% RH - 80% RH|
