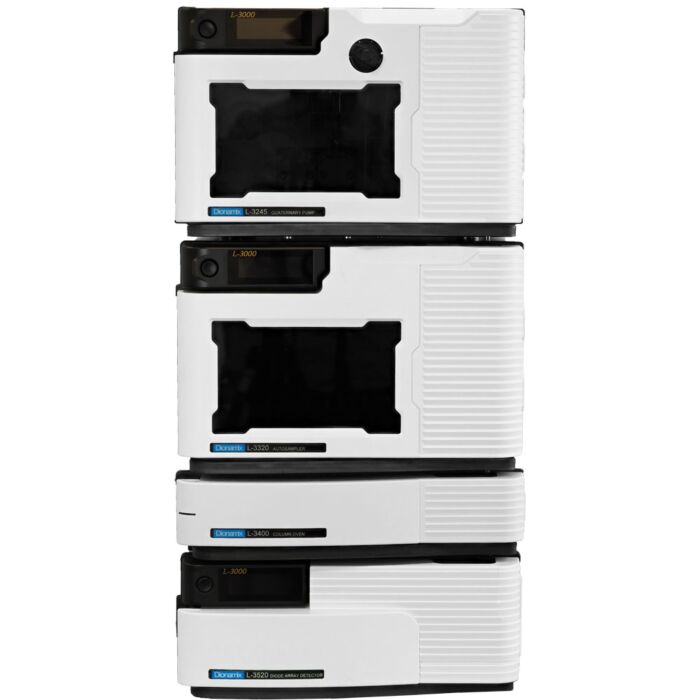

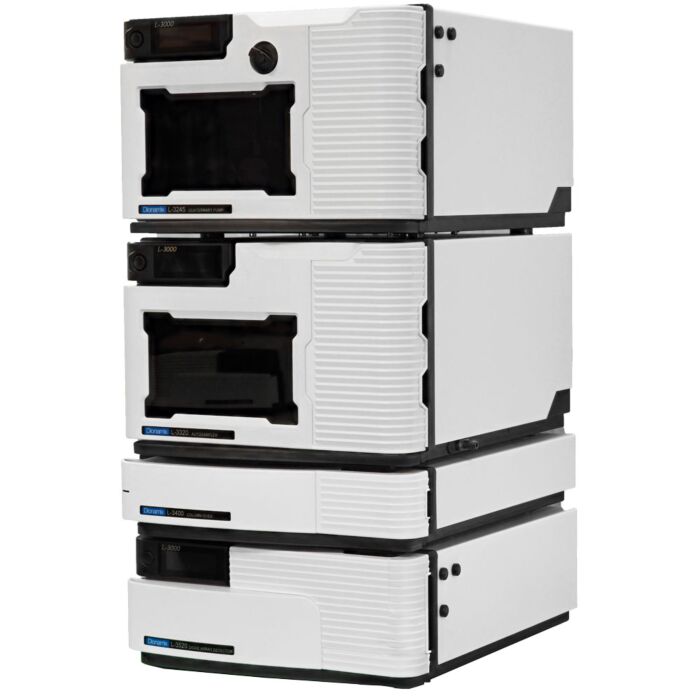

The Dionamix L3000 HPLC is a modular high performance chromatography system that has the benefit of great flexibility to meet the ever changing analytical method needs in Quality Control or Research applications. The L3245 quaternary pump employs a dual stage, high pressure pump design with 4 precision tuned solid state valves to deliver accurate flow rates at proportional mix volumes. The L3000 quaternary system is able to reproduce complex gradient tables very accurately and with a high degree of repeatability. The Dionamix L3520 Diode Array Detector with high sampling rates achieve high sensitivity, low noise chromatograph spectrum.
Quaternary system with built in degasser and dual stage pump to deliver high precision gradient elution
Multi vial Autosampler with precision pickup and unique inner and outer needle wash to minimize risk of cross contamination
Precision temperature controlled column chamber
Diode Array Detector offering high sensitivity detector with high resolution 3D graph showing Absorbance vs. Retention Time and Wavelength
Key Performance Specifications
Quaternary Pump with up to 9000 PSI (620 bar) at flow rates from 0.000 mL/min – 10.00 mL/min
Flow Rate Accuracy of ± 0.5% @ 1 mL/min, water
0.2% SD Gradient Repeatability
Autosampler Multi Injection Modes, full, partial and micro liter pickup.
Needle Dual Wash to reduce cross contamination to <0.02%
1024 Diode Array Detector with 0.6nm/Pixel Resolution
Detector wavelength Range of 190nm to 640nm with low noise (±0.6 x 10-5 AU) and low drift (0.5 x 10-3 AU/H)
Detector Full Spectrum data sampling 12 channels up to 100 Hz
