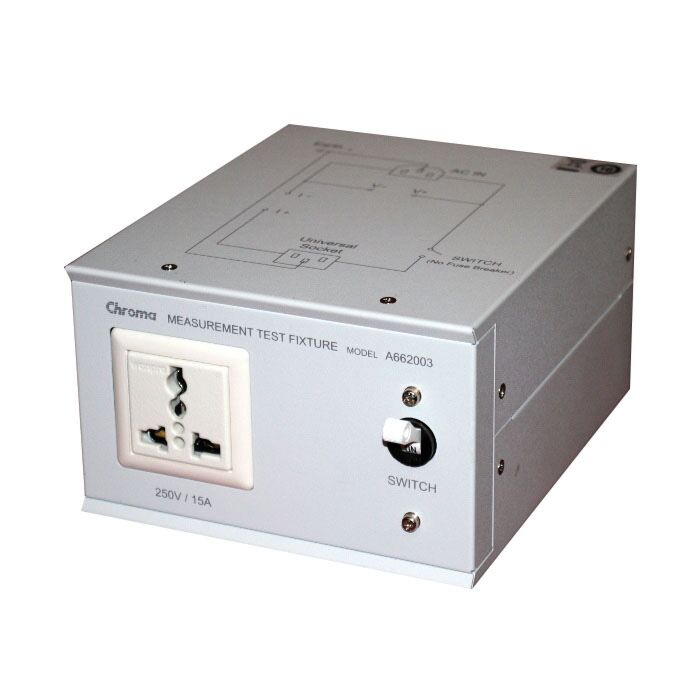

Chroma A662003 for Rent, Measurement Test Fixture for 66202 series
Order #
A662003-RENT2
|
Mfg #
A662003
Tariff fees or manufacture imposed surcharges may be applicable.
Overview
Chroma A662003 Highlights
- Voltage Range : 15/30/60/150/300/600 Vrms
- Current Range : 0.005/0.02/0.05/0.2/0.5/2/5/20 Arms
- Frequency Range : DC, 15Hz~10kHz
- Embedded high speed DSP, 16 bits Analog/Digital converters
- Half rack size, 4 input modules design (66204)
- Support different wiring configuration power measurement (1P2W/1P3W/3P3W/3P4W)
- Support external shunt and CT for higher current measurement application
- 5 mA minimum current range & 0.1mW power resolution
- Meets ENERGY STAR / IEC 62301 /ErP measurement requirements
- Accumulated energy methods for unstable power measurement
- User-define criteria provides automatic PASS/FAIL indications
- Dual current shunt design provides high accuracy over a wide current range
- THD and user-specify order distortion measurement
- Inrush current and energy measurement
- Voltage/ Current harmonics measurement up to 50 orders
