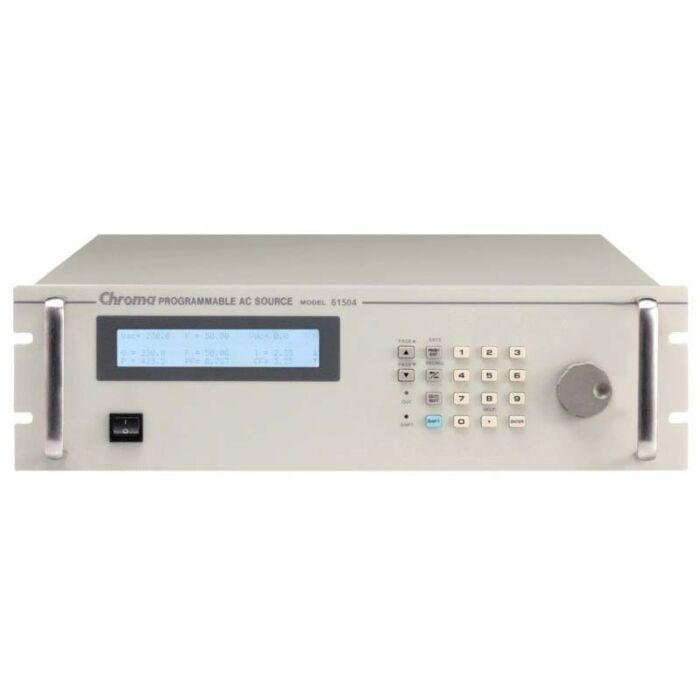

Rent the Chroma 61504 Programmable AC Source - 300V/15 - 1KHz/2KVA

Order # 61504-RENT2 | Mfg # 61504-RENT2

Request a Rental Quote









Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

Programmable AC Source 0-300V, 15Hz-1kHz / 2kVA with option: A615001 = Remote Interface Board: External V Input, GPIB, RS-232, Analog. It equips with all the powerful features such as power line disturbance simulation, programmable output impedance, comprehensive measurement function, wave-shape synthesis and regulation test software. Chroma also provides software for aerospace testing, including MIL-STD-704F, RTCA DO-160D, ABD100.

Using the state-of-the-art PWM technology, the Chroma 61500 AC source is capable of delivering up to 6 times of peak current (Model 61501~61505) versus to its maximum rated current which makes it ideal for inrush current testing.

  • 61504 : Programmable AC Source 0~300 V, 15~1 kHz / 2 kVA
  • Output rating power: 2000 VA
  • Voltage range: 0-300 V
  • Compact size and weight attributable to advance PWM Technology
  • AC+DC output mode for voltage DC offset simulation
  • Programmable output impedance for IEC 61000-3-3
  • IEC 61000-4-11, IEC 61000-4-14, IEC 61000-4-28 voltage dips and frequency variation simulation
  • Harmonics, interharmonics waveform synthesizer for IEC 61000-4-13 testing
  • Power line disturbance simulation capability
  • Programmable voltage and current limit settings
  • Comprehensive measurement capability, including current harmonics
  • High output current crest factor, ideal for inrush current testing
  • Turn on, turn off phase angle control
  • TTL signal which indicates output transient
  • Optional analog programmable Interface
  • Easy use graphic user interface: softpanel (option)
  • Softpanel for IEC regulation test
  • Capable of delivering power output up to 90 KVA by implementing master-slave parallel operation
