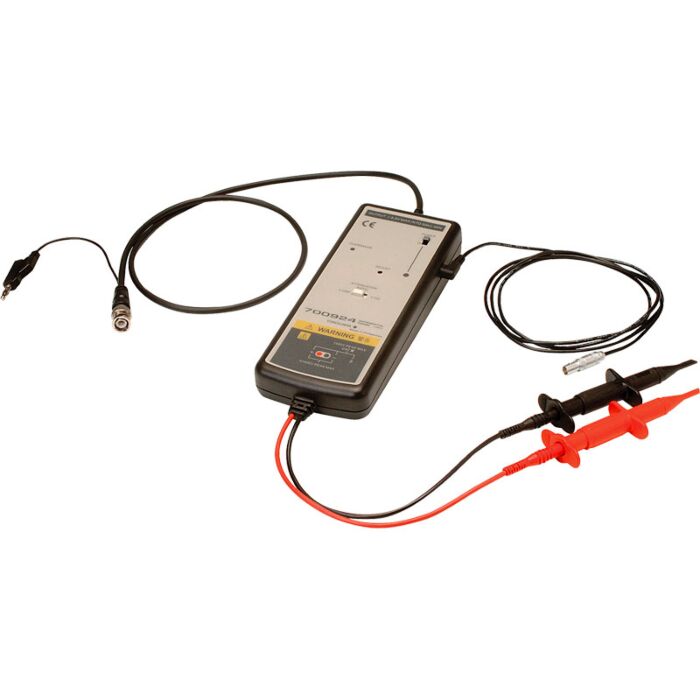

Yokogawa 700924 FOR RENT
Differential Probe,350Vp/1400Vp DIFF,1400Vp CM,100MHz

Order #: 700924-RENT2

Mfg #: 700924-RENT2

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Yokogawa 700924 FOR RENT

Differential Probe,350Vp/1400Vp DIFF,1400Vp CM,100MHz

Order #: 700924-RENT2

Mfg #: 700924-RENT2

Call for price
Call for price

Rent from the Instrument experts at TranscatRent from the Instrument experts at Transcat
Availability:
In stock
This product is available for shipping to the United States, Canada, and Puerto Rico only.
Questions about this product? Speak to an expert

Product Highlights

  • Bandwidth: DC to 100 MHz
  • Attenuation: 1000:1/100:1
  • Max. Input Voltage (to ground): ±1400 V (DC + ACpeak) or 1000 Vrms CAT III
  • Max. Differential Voltage: ±1400 V (DC + ACpeak) at 1000:1 attenuation & ±350 V (DC + ACpeak) at 100:1 attenuation
  • Probe Power: Internal battery or probe power supply

With increases in the speed of measured signals in recent years, it has become necessary to make floating measurements over a wide frequency band. The 700924 differential probe lets you make wide-band (100 MHz) differential input measurements by just connecting the probe to the input of a single-end input digital oscilloscope.

Oscilloscope input amplifiers are normally single-ended. They do not provide accurate measurements when used in combination with a 10:1 passive probe for measuring the gate-to-source voltage of a switching power supply, or potential difference with a common mode voltage in elements such as Insulated Gate Bipolar Transistors (IGBTs).

Furthermore, there is a risk that current will enter through the oscilloscope ground line and damage the oscilloscope.

Transcat Rentals - Rent Equipment from the Industry Leader
   Try Before You Buy
   Save Time & Money
   Weekly and Monthly Rentals
   Access Our Large Inventory
   Long-term Discounts and Rent-to-Buy Options Available

Shop all Rentals

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

Input type Balanced differential input
Frequency band DC up to 100 MHz (-3 dB)
Input attenuation ratio Switched between 1/100 and 1/1000
Input impedance Approximately 4 MΩ, approximately 10 pF parallel
Gain accuracy
  • ±2% (common mode voltage: 400 V or less)
  • ±3% (common mode voltage: 1000 V or less)
Maximum allowed differential voltage
  • ±350 V (DC + ACpeak) or 250 Vrms (1/100 range)
  • ±1400 V (DC + ACpeak) or 1000 Vrms (1/1000 range)
Maximum common mode input voltage ±1400 V (DC + ACpeak) or 1000 Vrms (both 1/100 and 1/1000 ranges)
Maximum input voltage ±1400 V (DC + ACpeak) or 1000 Vrms (1/1000 range)
Common Mode Rejection Ratio (CMRR) -80 dB (60 Hz), -50 dB (1 MHz)
Output voltage ±3.5 V
Output impedance Used with 1 MΩ input impedance
Power supplies Dry cells, four R6P (SUM-3); when using the AC/DC adapter, use an output voltage of 6 V/200 mA or greater/center plus
Dry cell life Approximately 2 hours under continuous use
External dimensions (approximate) 207 mm x 83 mm x 38 mm1
Total length Approximately 1.5 meters
Weight Approximately 800 grams (excluding dry cells)
Approved standards
  • EMC: EN55011: 1991 + A1: 1997 + A2: 1996
  • EN50082-1: 1992
  • Safety: EN61010-1: 1993 + A2: 1995
  • EN61010-2-031: 1994
