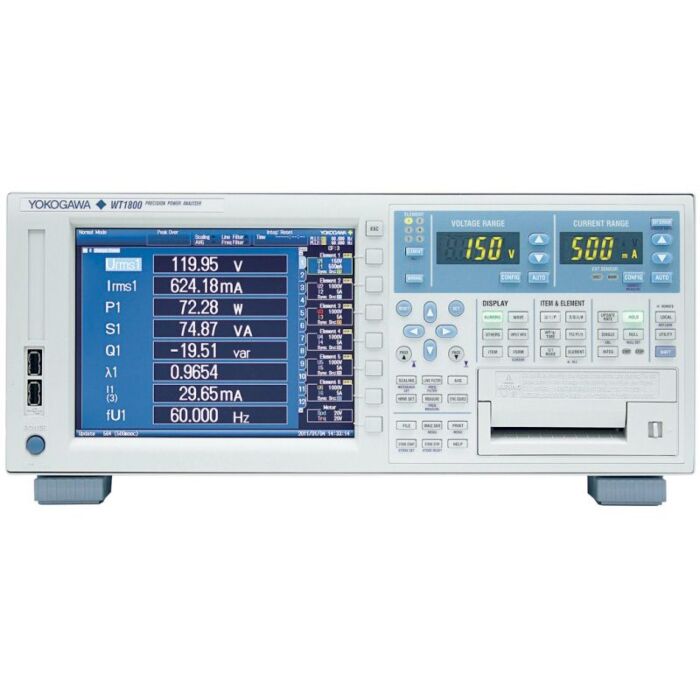

Yokogawa WT1803 for Rent, High Performance Power Analyzer, Option 03: Three Input Elements

Order # WT1803-RENT2 | Mfg # WT1803

Request a Rental Quote









Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

Yokogawa WT1803 for Rent, High Performance Power Analyzer, Option 03: Three Input Elements Accessories

checkbox-empty
Select
Danisense DSSIU-6-1U FOR RENT Current Transducer Interface Unit,6-Channel/Power Analysis
Danisense DSSIU-6-1U for Rent, Current Transducer Interface Unit, 6-Channel/Power Analysis
View details external-link
checkbox-empty
Select
Danisense 1411100002 for Rent, Cable, DS, Signal and Power DB9M/DB9F, 5m
Danisense 1411100002 for Rent, Cable, DS, Signal and Power DB9M/DB9F, 5m
View details external-link
checkbox-empty
Select
Danisense DS600ID for Rent, Current Transducer, 600Arms/900A Peak, 400mA/600mA Signal
Danisense DS600ID for Rent, Current Transducer, 600Arms/900A Peak, 400mA/600mA Signal
View details external-link
checkbox-empty
Select
Danisense DM1200ID FOR RENT Current Transducer, 1.2kArms/
Danisense DM1200ID for Rent, Current Transducer, 1.2kArms/±1.8kA Peak, 1:1500 Turns Ratio
View details external-link

Overview

Yokogawa WT1803 Highlights

  • Voltage and current frequency bandwidth 5 MHz (-3 dB, typical)
  • Reduction of low power-factor error to 0.1% of apparent power (2/3 of previous model)
  • Wide voltage and current range allowing direct input
  • 0.1 Hz low-speed signal power measurement and max. 50 ms high-speed data collection
  • Particular voltage and current range selectable
  • Support for Energy Conservation Technologies and Sustainable Energy Development
  • 50A/50A/50A, Opt.D: UL/CSA Standard Power Cord, Opt.HE: English menu, DA:20 Channel D-A Output; EX: External current sensor input for WT1803

When using external current transducers (CTs) with power analyzers, the CTs require power to operate. Thus, they need to be connected to the analyzers via a multi-channel power supply. Transcat rents primarily Danisense and Yokogawa external CTs with Yokogawa power analyzers. See Accessories tab.
