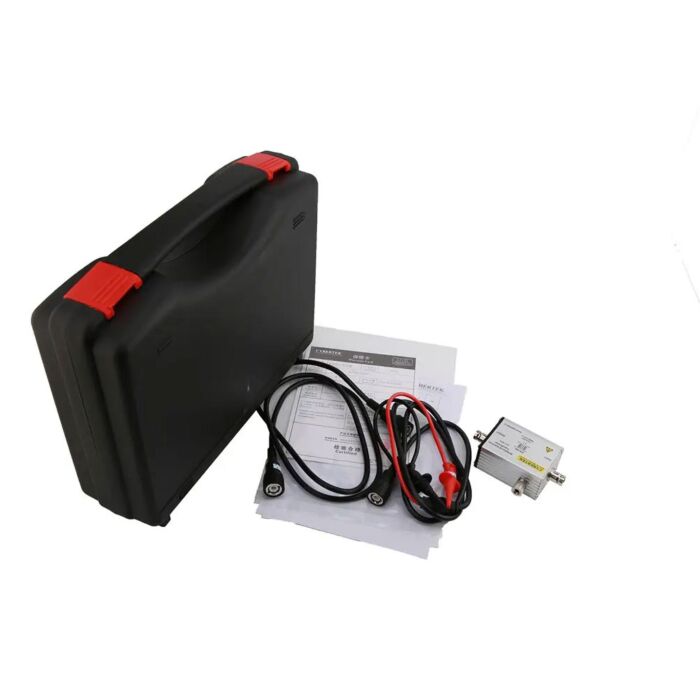

UNI-T UT-ISOT Wideband Injection Isolation Transformer for Oscilloscopes

The UT-ISOT is used for Bode Plot analysis. Requires a UNI-T brand oscilloscope to have MSO2000-S-BODE or MSO3000CS-S-BODE option.

• Used for Bode Plot analysis
• Requires scopes to have MSO2000-S-BODE or MSO3000CS-S-BODE option

Applications

• Bode Plot / Frequency-Response Analysis
• Switch-Mode Power Supply (SMPS) Loop Testing
• Control-Loop Stability / Amplifier Design
• Educational / Lab Use

Each Unit Includes

• 1 - Bode Plot Test Fixture (UT-ISOT)
