High-Resolution 1000HD series high-resolution oscilloscope has the maximum bandwidth of 150MHz, the maximum sampling rate of 1.25 GSa/s, and is equipped with 4/2 analog channels , with the memory depth of up to 100 Mpts. High-Resolution 1000HD series adopts exclusive UltraPhosphor3.0 technology, achieving the waveform capture rate of up to 500,000 wfms/s, with 256 levels of gray temperature colors, and features an innovative digital trigger system with high trigger sensitivity and low jitter. This oscilloscope supports multiple advanced triggers, serial bus triggering and decoding, and offers advanced sampling and analysis modes such as spectrum analysis, power analysis, histogram, waveform recording, hardware-accelerated template testing, and search and navigation. Additionally, this oscilloscope provides multiple measurements and mathematical operations. High Resolution 1000HD series features a 7-inch capacitive touch screen that supports multiple gestures for common waveform operations. Combined with multiple one-touch keys on the front panel, this greatly optimizes the efficiency of oscilloscope operation and improves the user experience.

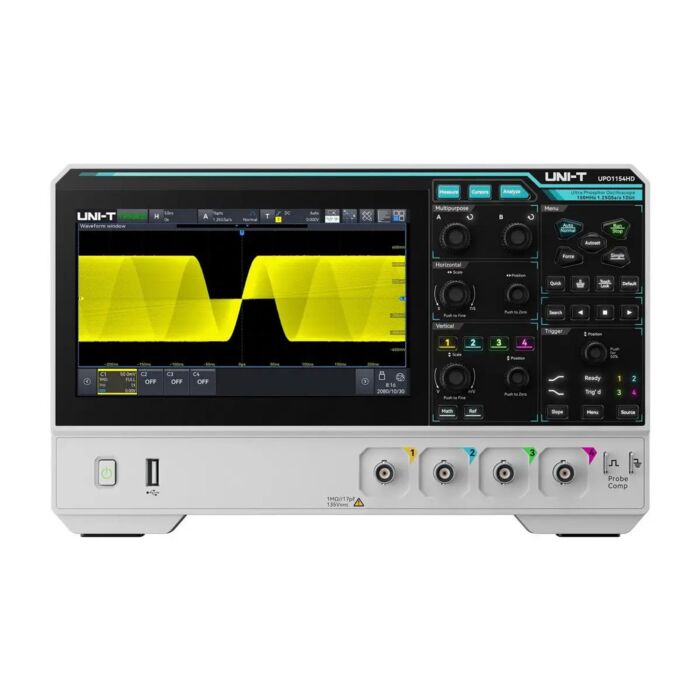

The UNI-T UPO1154HD is the flagship model of the UPO1000HD Series, offering 150 MHz bandwidth across four analog channels with 12-bit vertical resolution and deep 100 Mpts memory. Whether debugging multi-rail power systems, correlating sensor outputs, or capturing high-speed digital transitions, the UPO1154HD delivers unmatched clarity and confidence. With Ultra Phosphor 3.0 technology, built-in power analysis, protocol decoding, and a responsive 7"" touchscreen, this oscilloscope is a complete signal analysis platform in a compact USB-C powered form factor.
With Ultra Phosphor 3.0, the UPO1154HD renders waveforms with up to 256 intensity levels for visualizing complex signal dynamics. Detect anomalies, measure jitter, and identify timing issues across multiple channels in real-time. The scope achieves up to 1,000,000 wfms/s in sequence mode to capture elusive events with clarity.
- 150 MHz Bandwidth - Capture fast signals and high-speed switching with precision
- 4 Analog Channels - Simultaneous acquisition across complex designs or multi-rail power systems
- 12-bit Vertical Resolution - Delivers 16x more detail than standard 8-bit scopes
- 1.25 GSa/s Sample Rate - High-speed sampling across all channels
- 100 Mpts Memory Depth - Capture long events and zoom in with full fidelity
- Ultra Phosphor 3.0 - 256-color grading with up to 1,000,000 wfms/s waveform capture rate
- Power Analysis Suite - Built-in tools for ripple, SOA, startup, harmonics, and switching loss
- 1M-point FFT - Visualize EMI, clock harmonics, and noise spectra with waterfall mode
- Protocol Decoding - Decode UART, I2C, SPI, CAN, and LIN with time correlation
- 6-in-1 Integration - Oscilloscope, DVM, frequency counter, spectrum and protocol analyzers, and power suite
- USB-C PD Input - Flexible power delivery from benchtop or battery
- LAN, USB and HDMI - Built-in SCPI automation, web control, and external display support
Applications
- Embedded Systems & Mixed Analog Digital Design
- Education / Teaching / Lab Environments
- Service / Maintenance / General Electronics Testing
- Analog Signal Validation and Power Electronics
Each Unit Includes
- 1 - 150MHz, 4-Channel, 1.25 GSa/s High-Resolution Oscilloscope (UPO1154HD)
- 2 - Passive Probes (200 MHz) (UT-P05)
- 1 - USB 2.0 Cable (UT-D14)
- 1 - Type-C PD Power Adapter
- 1 - User Manual and Calibration Certificate
