UPO1000 series digital phosphor oscilloscope adopts UNI-T 3D technique Ultra Phosphor 2.0 with new appearance upgrade and the function of deep storage, high waveform capture rate, real-time waveform recording and playback and 256-level grayscale display. The series is equipped with three levels of bandwidth of 50 MHz/100 MHz/200 MHz, real-time sampling rate upto 2 GSa/s. The whole series are equipped with 4 channels, the maximum memory depth is 56 Mpts, up to 500,000 wfms/s in Fast Acquire mode. Hardware real-time waveform uninterrupted recording and waveform analysis up to 120,000 waveform frames; support independent DVM module, rich trigger and bus decoding functions, and support full memory hardware real-time decoding. It widely used in many fields, including communication, semiconductor, computer, IC design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance and R&D/education.

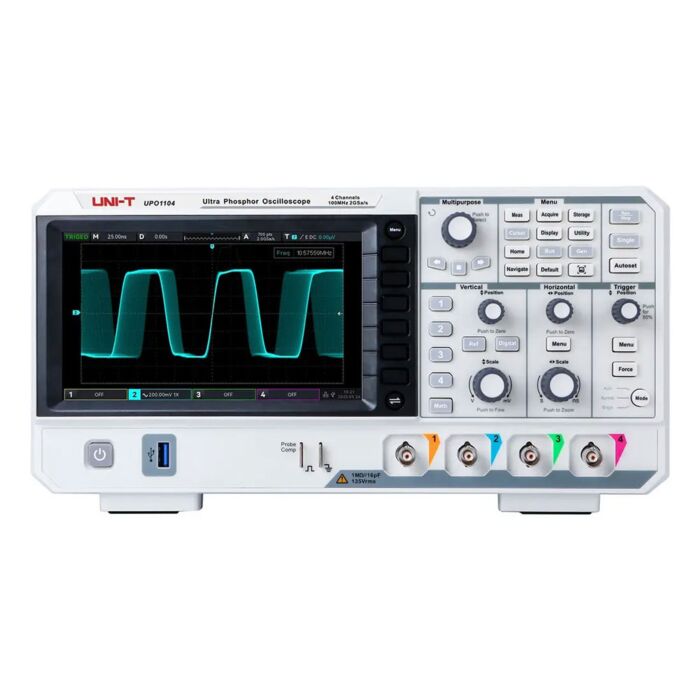

Discover the untapped capabilities of the UNI-T UPO1104 Digital Phosphor Oscilloscope, a dynamic tool meticulously crafted to enhance electronic and electrical projects across diverse fields. With a maximum storage depth of 56Mpts, this system boasts an impressive capacity for capturing and retaining intricate details within waveforms. The combination of this substantial storage depth and the system's commitment to capturing both the entirety and intricate details of waveforms exemplifies its advanced capabilities in providing a thorough and nuanced analysis of signals.
Improve signal analysis with the UPO1104's 1Mpts FFT sampling points, offering a gateway to in-depth frequency domain examinations. Customize spectrum analyzer functions, such as frequency range, detection mode, and spectrum marking, allowing for a thorough and customized exploration of signals. Uncover the hidden nuances within waveforms with precision and accuracy.
- Analog channel bandwidth: 100 MHz
- Analog channel number: 4
- Maximum sampling rate: 2GSa/s
- Vertical scale: 500µV/div to 20 V/div
- Low-base noise: <100µVrms
- Maximum memory depth up to 56Mpts
- Waveform capture rate of up to 500,000 wfms/s
- The hardware can be continuous waveform recording 120,000 frame in real time
- Automatic measurement of 36 waveform parameters, the measurement range divides into screen and cursor area
- Supports 7-digit hardware frequency counter measurement
- DVM supports AC/DC TRMS (true virtual value) measurement
- Waveform calculation function (FFT, add, subtract, multiply, divide, digital filter, logical operation and advanced operation)
- 1M sampling points to enhance FFT function, it supports frequency setting, waterfall curve, demodulation mode and marker measurement
- Multiple trigger functions (edge, pulse width, video, slope, runt pulse, over-amplitude pulse, delay, timeout, duration, setup hold, Nth edge and code pattern)
- Supporting RS232, I2C, SPI trigger
- Innovative RS232, I2C, SPI full memory hardware for real-time decoding
- Ultra phosphor display effect, 256 grayscale display
- 7- inch WVGA (800X480) TFT LCD
- Multiple interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM)
- Supporting waveform navigation, marker and segment
- Supporting SCPI programmable standard command
- Supports web access and control
- Certifications: cETLus, CE, ROHS, UKCA
Applications
- General Purpose Electronics Design & Debugging
- Education / Student Labs
- Field Maintenance / Service / Industrial Electronics
- Embedded Systems
Each Unit Includes
- 1 - 100MHz, 4-Channel, 2 GSa/s Digital Phosphor Oscilloscope (UPO1104)
- 4 - Oscilloscope Probes (UT-P03)
- 1 - Power Cord
- 1 - USB2.0 Printing Cable
