UDP6900 series is single output programmable DC power supply. This series can realize all sorts of combined output of voltage and current in rated power. A single power supply can meet the two kinds of objects to be tested, high voltage and low current or high current and low voltage test, which greatly saves your cost and space. Take UDP6942B (60V/15A/360W) as an example, it can realize various combination of 60V/6A/360W, 40V/9A/360W and 24V/15A/360W.
UDP6900 series has a built-in interface of RS232, RS485, USB and analog quantity. It supports SCPI protocol for remote control, PLC control and setting up an intelligent test platform. It widely used in DC-DC power module, battery charging and sensor and other testing fields.

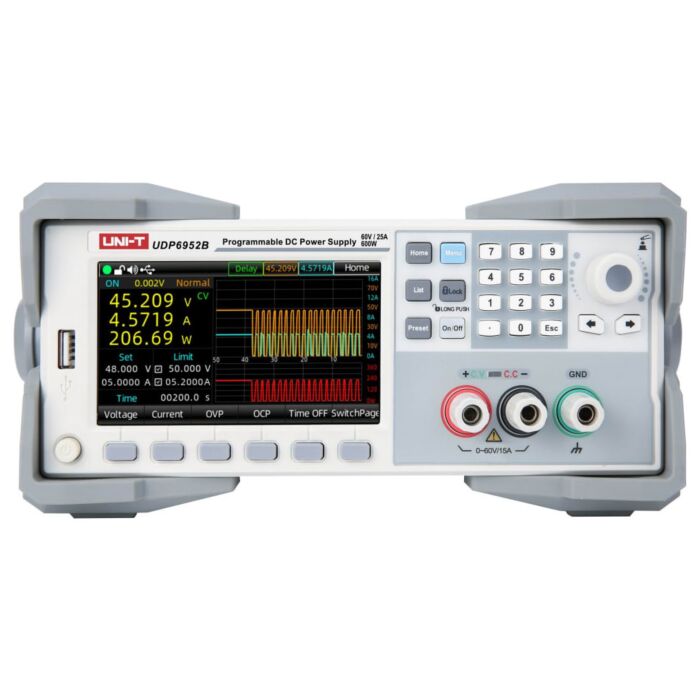

The UNI-T UDP6952B is a single-output programmable DC switching power supply designed to provide flexible voltage and current outputs within its rated power. This versatility allows it to handle both high-voltage/low-current and high-current/low-voltage tests with a single unit.
Equipped with RS232, RS485, USB, and analog interfaces, the UNI-T UDP6952B supports SCPI protocol for remote control and PLC integration, enabling the creation of intelligent test platforms. It is ideal for applications in DC-DC power module testing, battery charging, sensor evaluation, and other related fields, offering a powerful and flexible solution for engineers.
- DC Voltage: 0-60V
- DC Current: 0-25A
- DC Power: 600W
- Resolution: 1mV/0.1mA
- High accuracy and resolution with low ripple and noise
- OVP (Over Voltage Protection) and OCP (Over Current Protection)
- Voltage and current can be adjusted by the numeric keyboard and the encoder knob
- Control the output of the voltage and current
- Directly set your test scenario or use SCPI, Multi-SCPI, or Modbus RTU protocols
- Interfaces: RS232 & RS485 communication interfaces, LAN port supports Web remote control and VXI bus, USB Host and Device
- Rack mountable: Includes both front and rear panel connections
- Supports 18x8 group memory for saving and loading
- Output time control: Can be set (0.1-99999.9 seconds)
- Output slope control: Supports output voltage and current slope setting
- Digital voltmeter: Built-in 4 ½ digit voltmeter for outside measurement
- Remote sense: Used to avoid voltage drops due to long wires
- External controls: analog control and digital control
- Energy efficient: Build for high efficiency and low heat generation. Intelligent fan control saves energy
- Display: 4.3in TFT true color LCD Adjustable backlight
- Simultaneous display of the set voltage and current, output voltage and current
- Input voltage range: Supports 100 to 240V
Applications
- R&D / Prototyping / Design Labs
- Component / Module Testing
- Battery / Charging / Sensor / Power Electronics
- Automated Test / Production / QA Environments
- Educational / Teaching Labs
- Repair / Diagnostic / Bench Power Supply
Each Unit Includes
- 1 - Single Channel Programmable Switching DC Power Supply, 60V/25A, 600W (UDP6952B)
- 1 - Power Cord
- 1 - USB2.0 Printing Cable
- 1 - Digital IO Plug
