The UNI-T UTZ047 Macro Lens transforms the UTi760X thermal camera into a precision microscopic thermal imaging tool, enabling extraordinary close-up inspection with 50µm (0.002 inch) resolution capability. With its specialized 18mm F/1.1 optical design and ultra-close imaging range of 27mm to 76mm (1.1 to 3.0 inches), the UT-Z047 advanced lens reveals thermal details invisible to standard thermal cameras, making it indispensable for printed circuit board analysis, semiconductor inspection, precision electronics troubleshooting, and any application requiring component-level thermal diagnostics. The macro lens bridges the gap between standard thermal imaging and thermal microscopy, providing manufacturers, repair technicians, and quality control professionals with unprecedented thermal detail for miniaturized components and electronic assemblies.
- 50µm Resolution Capability: Extraordinary thermal detail for component-level diagnostics
- 18mm F/1.1 Macro Design: Specialized optics for ultra-close thermal imaging
- 27mm to 76mm Imaging Range: Ultra-close working distance for precision inspection
- 24° x 19.3° Field of View: Familiar perspective optimized for close work
- PCB and Electronics Optimized: Ideal for circuit board thermal analysis
- Microscopic Thermal Detail: Reveals individual component temperatures
- Automatic Lens Recognition: Seamless UTi760X system integration
- Professional Construction: Precision-engineered for demanding technical applications
Applications
- General Industrial Inspection
- Building Diagnostics
- Process Monitoring
- Preventive Maintenance
Each Unit Includes

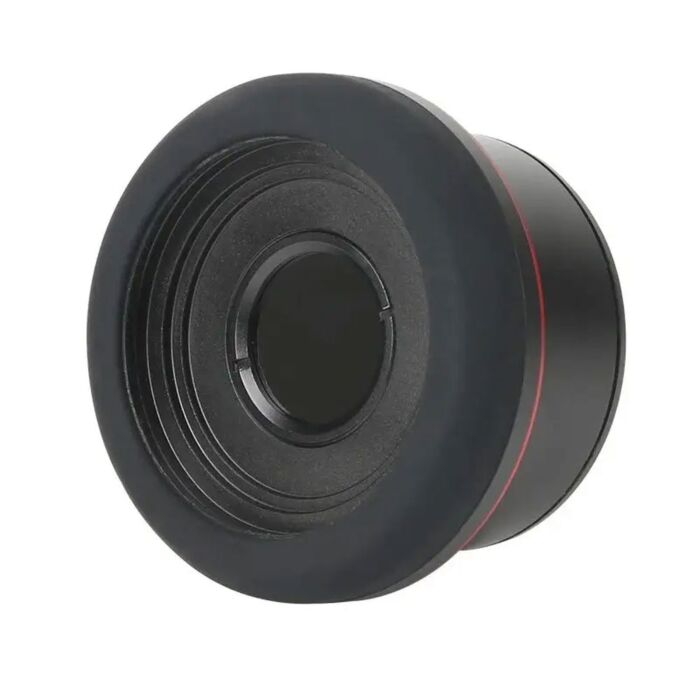

- 1 - Macro Lens for UNI-T UTI760X Thermal Imagers (UT-Z047)
