The UTS3000B series spectrum analyzer can measure frequencies up to 8.4GHz. It is a spectrum analyzer with wide frequency band coverage and superior performance. The series adopts mature all digital IF technology. It provides a variety of analysis functions, and up to 40001 scanning points, providing better help for your frequency domain analysis. This series of spectrum adopts a 10.1 inch large touch screen, which will bring you a better use experience. The UTS3000B series can be applied to functional/terminal/quality inspection tests in the electronics manufacturing industry, as well as wireless communication measurement, RF microwave courses, electromagnetic compatibility pre-scan, semiconductor measurement and many other application scenarios.

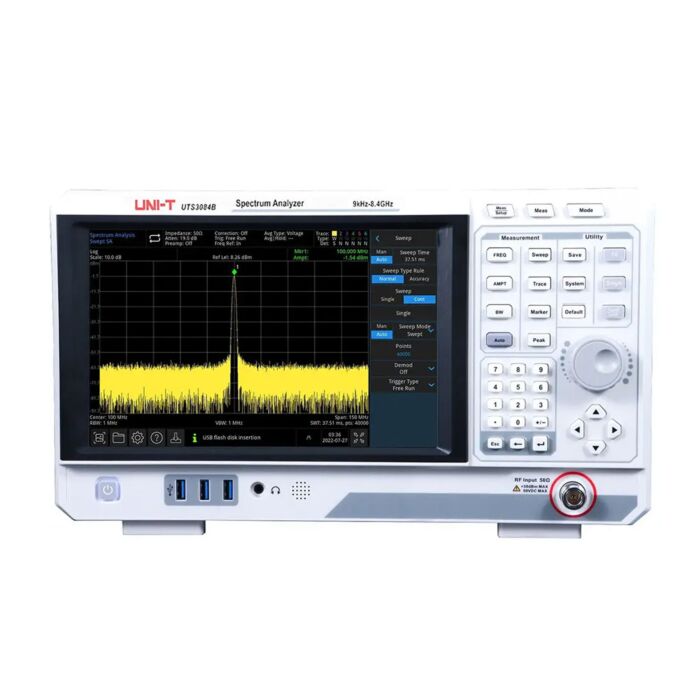

The UNI-T UTS3084B 8.4GHz Performance-Series Spectrum Analyzer empowers electrical engineers with its versatile capabilities. With a frequency range of 9kHz to 8.4GHz and optional tracking generator functionality, this instrument offers a wide array of benefits and applications for professionals in the field. The UNI-T UTS3084B provides excellent selectivity, allowing for stronger signal resolution even in the presence of adjacent unequal amplitudes. This capability is invaluable in scenarios where precise signal separation and analysis are required, such as identifying interference sources in crowded frequency bands.
The UTS3084B offers both internal and external reference source options. It can automatically switch to an external reference source when a 10MHz clock signal is detected from an external source, streamlining synchronization with other devices. This flexibility is advantageous in scenarios where precise synchronization is crucial, such as network timing applications. The 10.1-inch multi-touch HD capacitive screen simplifies menu settings and supports various gesture operations like dragging, expanding, and zooming on the trace. This intuitive interface enhances user experience, ensuring quick and efficient operation in diverse settings, from the field to the laboratory. With the capacity to scan up to 40,001 sweep points, this spectrum analyzer delivers higher frequency resolution, making it easier to capture signals that may be challenging to detect. This feature is particularly useful in applications where identifying specific signals or troubleshooting complex RF environments is essential.
- Frequency measurement range: 9 kHz~8.4 GHz
- Display average noise level can be as low as -161 dBm (typical value)
- Phase noise <-98 dBc/Hz (Offset 10 kHz, typical value)
- Full amplitude accuracy <0.7 dB
- Up to 40001 scanning points
- Minimum resolution bandwidth (RBW) 1 Hz
- Advanced function one key measurement (optional)
- EMI Pre-compliance analysis function (optional)
- Support analog demodulation analysis (optional)
- Vector Signal Analysis (optional)
- 10.1 inch 1280 x 800 HD capacitive touch screen
- Provide USB/LAN interface, support SCPI
Applications
- Wireless Communications & RF Module Testing
- R&D / Component Characterization
- Pre Compliance EMI/EMC Testing
- Production / Quality Control in Manufacturing
- Educational and Training Labs
Each Unit Includes
- 1 - 9kHz-8.4GHZ Performance-Series Spectrum Analyzer (UTS3084B)
- 1 - Power Cord
- 1 - USB2.0 Printing Cable
