The UNI-T UTS3000A Series Signal Analyzers are engineered to support electrical engineers working with high-frequency applications, offering a maximum measurement range up to 8.4 GHz depending on model. Designed with advanced digital intermediate frequency technology, they enable comprehensive analysis, ideal for precision work in RF and microwave testing, wireless communication analysis, and component testing in electronics manufacturing. Featuring a high-resolution display, the UTS3000A analyzers facilitate detailed frequency domain analysis and efficient navigation, making them aa valuable tool for engineers needing reliable performance up to 8.4 GHz. The UTS3000A series is available in three versions differing primarily in the frequency ranges of the signal analyzer, tracking generator, and vector network analyzer components of the instrument.

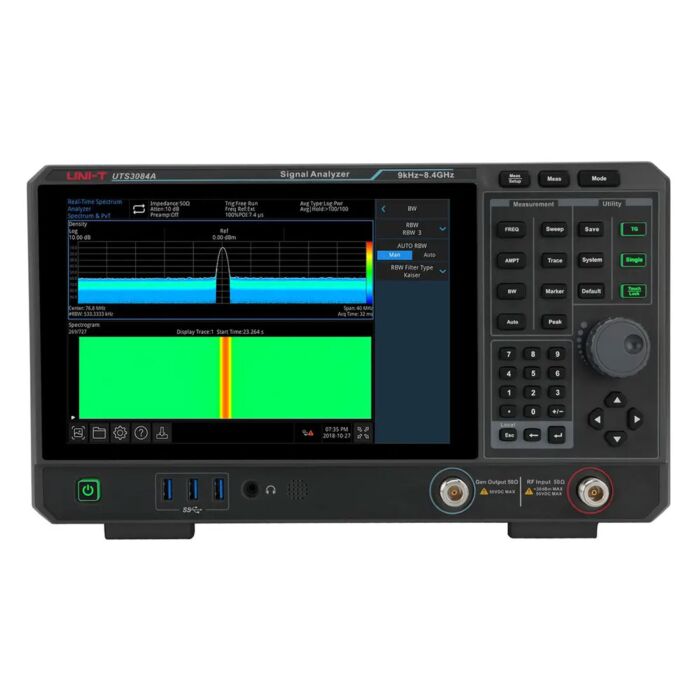

The UNI-T UTS3084A signal analyzer enables electrical and RF engineers to quickly diagnose and resolve complex signal issues with real-time spectrum analysis and advanced features like vector network and EMI analysis. The UTS3084A signal analyzer is useful across various industries, including telecommunications, electronic engineering, and research and development. The UTS3084A offers comprehensive frequency capabilities, real-time analysis features, and impressive accuracy to simplify demanding measurement tasks.
- Frequency Range: 9 kHz to 8.4 GHz
- Displayed Average Noise Level (DANL): -165 dBm/Hz (typical)
- Phase Noise: < -100 dBc/Hz at 10 kHz offset (typical)
- Resolution Bandwidth (RBW): 1 Hz to 10 MHz
- Sweep Points: Up to 40,001
- Real-Time Bandwidth (Optional): 40 MHz
- Vector Network Analysis: Standard with S11 and S21 parameter measurements
- Analog and Digital Signal Demodulation Support: AM, FM, PM, and various digital modulation formats
- Screen: 10.1-inch 1280 x 800 HD multi-touch display
- Connectivity: LAN, USB, HDMI, and SCPI remote control support
- Real-Time Frequency Sweep with Density Spectrogram
- Frequency Template Trigger for High-Precision Measurements
- Versatile Vector Network Analysis (VNA) Mode
- Supports Pre-Compliance EMI Testing
- HD Multi-Touch Display for Enhanced Usability
Applications
- RF/microwave Development & Test
- Component/ Network Analysis
- Spectrum Monitoring & Real-Time Capture
- EMI Pre-Compliance and Wireless Communications Test
- Manufacturing, QA & Production Line Use
Each Unit Includes
- 1 - 8.4GHz Expert-Series Signal Analyzer with Tracking Generator (UTS3084A)
- 1 - Calibration Report (COC)
- 1 - Power Cord
- 1 - USB2.0 Printing Cable
