USG5000M series RF signal generators deliver high-quality signals, precise signal levels, and an ultra-wide output power range, meeting the demanding testing needs of wireless communication, aerospace, automotive electronics, industrial manufacturing, semiconductor, and research and education industries.

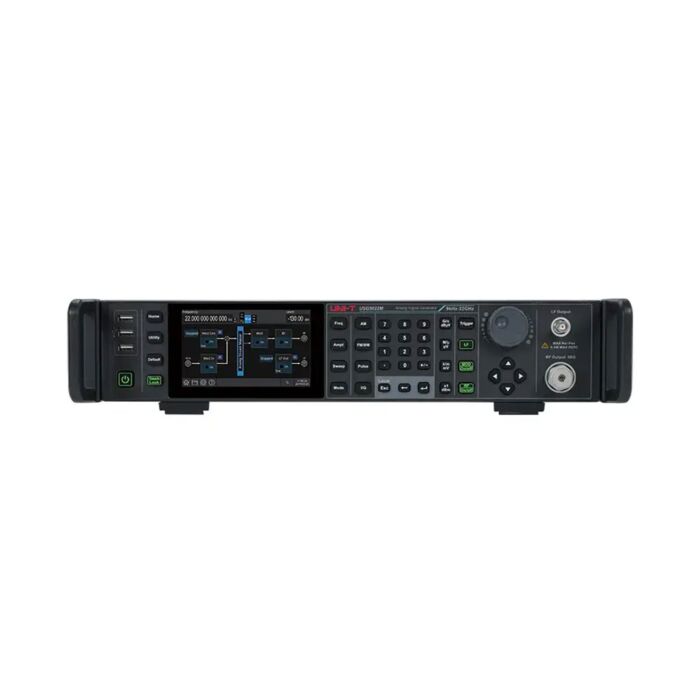

The UNI-T USG5022M-P delivers exceptional performance from 9 kHz to 22 GHz with mechanical attenuation for premium output power and stability. This state-of-the-art instrument meets the exacting requirements of advanced wireless communications, aerospace and defense, satellite systems, and millimeter-wave research where extended frequency coverage and superior signal quality are non-negotiable.
- Mechanical Attenuator System: Premium mechanical attenuation for unmatched output power stability and signal integrity
- Industry-Leading Frequency Range: Generate precision signals from 9 kHz to 22 GHz with 0.001 Hz resolution
- Extended Output Power Range: Deliver up to +23 dBm output (frequency dependent) with precise level control
- Outstanding Signal Purity: Ultra-low phase noise (<-122 dBc/Hz @ 1 GHz, -98 dBc/Hz @ 22 GHz) for sensitive testing
- Exceptional Level Accuracy: ≤ 0.7 dB (typical) for reliable measurements across the frequency spectrum
- Comprehensive Modulation Suite: Standard AM, FM, and ΦM with internal, external, or combined sources
- Advanced Sweep Capabilities: Frequency, amplitude, and list sweeps with customizable parameters
- High-Stability Reference: Internal timebase with ≤ ±0.2 ppm/year aging rate for long-term stability
- Integrated Function Generator: Built-in 50 MHz arbitrary waveform generation for added versatility
- Professional Connectivity: Remote operation via LAN, USB, and optional GPIB interfaces
Applications
- Microwave / High-Frequency Component Testing
- Satellite Communications & Aerospace Systems
- Radar System Development and Testing
- Automated Test / Production Line Integration
- Research & Educational Labs
Each Unit Includes
- 1 - 9 kHz to 22 GHz Analog RF Signal Generator with Mechanical Attenuator (USG5022M-P)
- 1 - Power Cord (Compliant with Local Standards)
- 1 - USB Data Cable (UT-D14)
- 1 - 2.92-KKG Connector (UT-C04-40GHz)
- 1 - User Manual
- 1 - Calibration Certificate
- 1 - Quick Start Guide
