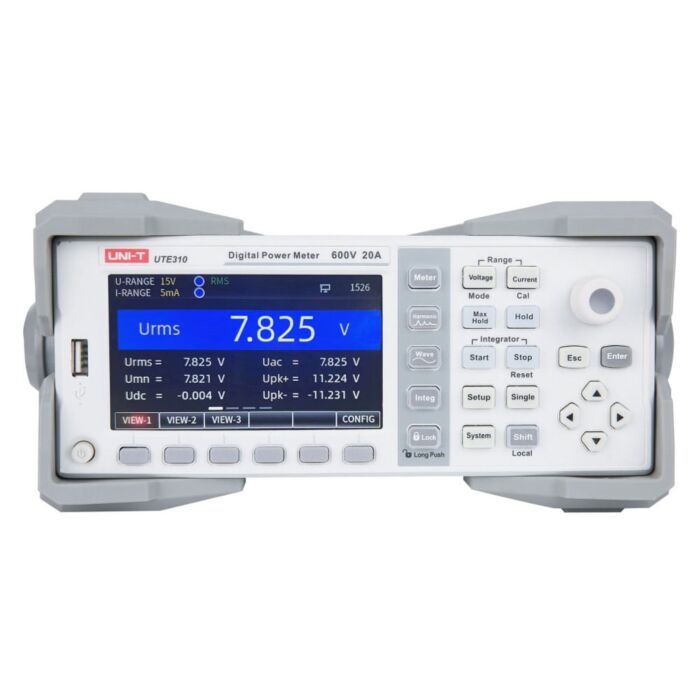

The UNI-T UTE310H High-Voltage Precision Digital AC Power Meter is a high-accuracy digital power meter offering top-tier performance for measuring voltage, current, and power in demanding high-power environments. With a 4.3-inch full-color display and advanced waveform visualization, this tool provides a streamlined user experience. The wide measurement range (10mA-50A / 75mV-1000V) and broad 300kHz bandwidth make the UTE310H perfect for R&D, testing, and production environments requiring higher power measurements.
This power meter excels in assessing DC and single-phase AC systems, high-power household appliances, industrial machinery like frequency converters and large air conditioners, and other applications requiring measurements of larger currents and voltages.
A vivid 4.3-inch full-color TFT LCD allows users to view three display interfaces simultaneously, providing more parameter information in a single glance. This large, crisp display reduces the need for multiple tools and enhances overall efficiency during testing and analysis.
The UTE310H features an impressive power measurement range from 15W up to 50000W, making it ideal for industrial applications and high-power equipment testing. This extended range allows engineers to work with much larger systems without the need for additional equipment or workarounds. The UTE310H boasts a 300kHz bandwidth, allowing users to capture higher-frequency signals even in high-power environments. This ensures measurements are comprehensive and able to handle a wide range of signals for diverse applications, from high-performance R&D environments to complex industrial testing.
- AC and DC voltage: 15V, 30V, 60, 150V, 300V, 600V, 1000V
- AC and DC current: 1A, 2A, 5A, 10A, 20A, 50A
- AC and DC power: 15W-50000W
- Frequency Measurement: 0-300kHz
- Integration power: 0-10000 hours
- Four operations: A+B, A-B, AxB, A/B, A/B^2, A^2/B
- RMS measurement range: 10mA-50A / 75mV-1000V
- Highest resolution: 1mV/0.1uA/0.001mW
- Basic accuracy of voltage, current and power: 0.1%
- Measurement bandwidth: DC, 0.1Hz-300kHz
- Sampling rate: 1MHz
- Rich communication interfaces: USB, LAN
- Supports both Modbus and SCPI communication protocols
- Display wave function: Voltage, current
- 50th harmonic measurement (Supports IEC61000-4-7 standard, 50th harmonic analysis)
- Rich math operations
- D/A output for measurement recording
- Comparator function
- Memory: USB data storage
- Display: 4.3" TFT-LCD resolution 480*272
Applications
- Industrial Equipment Monitoring
- Preventive and Predictive Maintenance
- Quality Control in Manufacturing
- Laboratory and Research Applications
- Educational and Training Purposes
Each Unit Includes
- 1 - High-Voltage Precision Digital AC Power Meter with GPIB Interface (UTE310H)
- 1 - Power Cord
- 1 - Set of Safety Leads
- 1 - Y-Terminal
- 1 - Set of Alligator Clips
