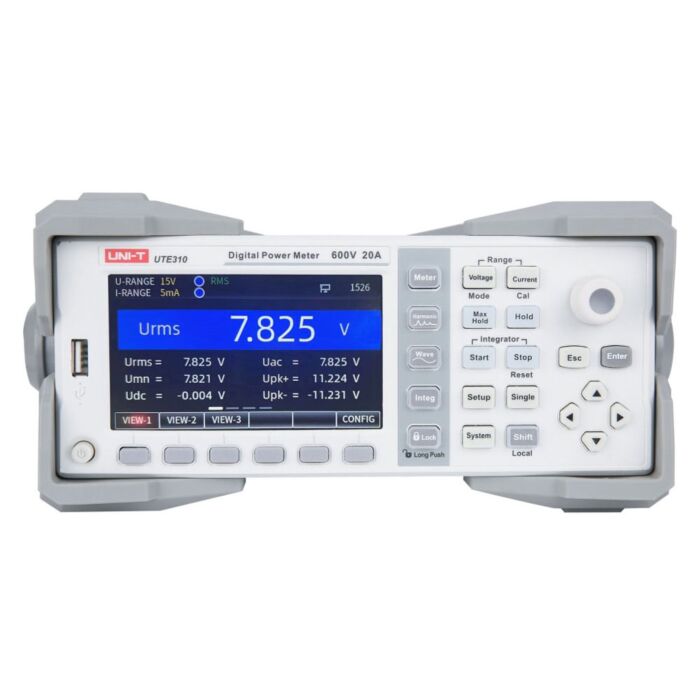

The UNI-T UTE310 AC/DC Power Meter is the ultimate tool for precise energy measurement and analysis, designed to meet the rigorous demands of professional engineers. With its high accuracy, extensive measurement range, and versatile features, the UTE310 ensures engineers can confidently assess and improve energy efficiency across various applications.
The UNI-T UTE310 is a high-accuracy digital power meter offering top-tier performance for measuring voltage, current, and power. With a 4.3-inch full-color display and advanced waveform visualization, this tool provides a streamlined user experience. The wide measurement range (25µA-20A / 75mV-600V) and broad 300kHz bandwidth make the UTE310 perfect for R&D, testing, and production environments.
This power meter excels in assessing DC and single-phase AC systems, household appliances like air conditioners, office equipment, energy-saving devices such as LED lights, and industrial machinery like frequency converters and large air conditioners.
- Large, bright 4.3 inch TFT LCD screen - Displays multiple parameters at once, making it easy to read and operate
- Measuring range of voltage and current RMS: 25µA-20A / 75mV-600V
- Maximum resolution of voltage and current: 1mV/0.1µA
- Basic accuracy of voltage, current and power: 0.1%
- Maximum resolution of power: 0.001mW
- Measurement bandwidth: DC, 0.1Hz-300kHz
- Sampling rate: 1MHz
- Multiple interfaces: USB, GPIB (optional), LAN
- Communication protocol: Modbus and SCPI
- AC and DC voltage: 15V, 30V, 60, 150V, 300V, 600V
- AC and DC current: 5mA, 10 mA, 20 mA, 50 mA, 100 mA, 200 mA, 500 mA, 1A, 2A, 5A, 10A, 20A
- AC and DC power: 75mW-1200W
- Frequency Measurement: 0-300kHz
- Integration power: 0-10000 hours
- Four operations: A+B, A-B, AxB, A/B, A/B^2, A^2/B
- Supports the harmonic measurement of IEC61000-4-7, which can analyze the harmonic component in your signal, such as voltage, current, power and phase angle
- External sensor: Current
- DAC output: U, I, P, S, Q, ?, Ø , fU, fI, Upk, Ipk, WP, WP, q, q, MATH
- Certifications: CE, ROHS
Applications
- Industrial Equipment Monitoring
- Preventive and Predictive Maintenance
- Quality Control in Manufacturing
- Laboratory and Research Applications
- Educational and Training Purposes
Each Unit Includes
- 1 - AC/DC High-Performance Digital Power Meter (UTE310)
