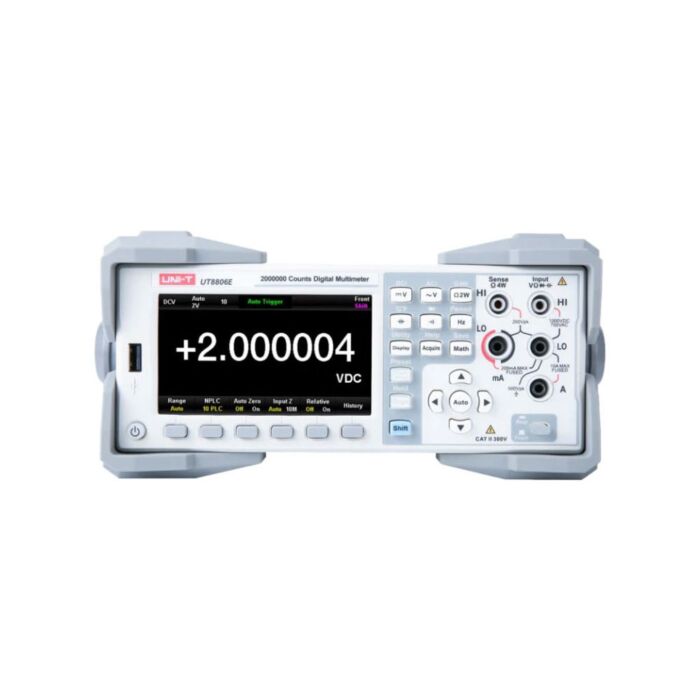

The UT8806EG is a high-accuracy 6½-digit benchtop multimeter designed for advanced applications. It offers 2,000,000 counts, 0.0035% DCV accuracy, and a rapid 10k rdgs/s speed. Connectivity includes LAN, USB, RS-232, and a standard GPIB interface for seamless integration into automated test environments.
- 4.3 in. TFT-LCD, display resolution 480x272
- 6 1/2 digital reading
- Measuring speed up to10,000 rdgs/s
- TRMS AC voltage and current measurement
- Total capacity of 32Gb Nand Flash for saving a large number of setting and data files of the instrument
- Built-in thermocouple cold-end compensator
- Supports SCPI remote control command, upper computer software and compatible with the latest mainstream multimeter command set
- Supports dual display, simplified Chinese and English display, and built-in help system for accessing information easily
- Configuration interface has USB Host,USB Device, LAN, RS-232C and GPIB (optional)
- Measured data and settings can be imported or exported by VXI-11, USBTMC and USB, so that users can easily modify, view and backup
- Backup is support SCPI remote control command
Applications
- R&D/ Development Laboratories
- Automated Test Systems
- High-Precision Calibration and Validation
- Educational and Training Environments
Each Unit Includes
- 1 - True-RMS 6.5 Digit Performance-Series Bench Digital Multimeter (UT8806EG)
- 1 - USB Printing Cable
- 1 - RS232 Interface Cable
- 1 - Alligator Clip Short Test Cable (UT-L41)
- 1 - Pen (UT8805)
- 1 - K-Type Temperature Probe
