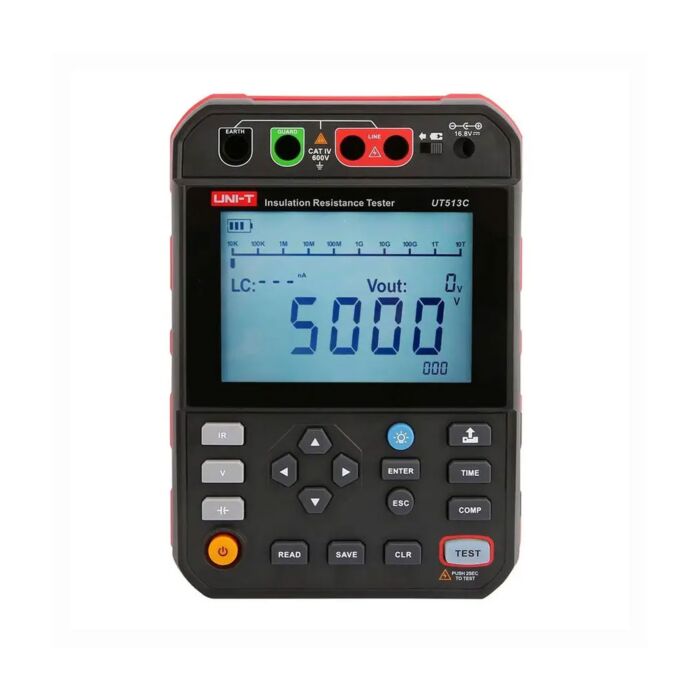

The UNI-T UT513C combines professional-grade measurement capabilities with smart connectivity features for the modern electrical professional. This advanced 5kV digital insulation resistance tester offers an exceptional measurement range up to 5Tohms, making it ideal for testing the most demanding high-resistance insulation systems found in critical infrastructure and specialized industrial applications.
Featuring a high-resolution dot matrix display, Bluetooth mobile app connectivity, and comprehensive measurement functions, the UT513C delivers laboratory-grade precision with unmatched field versatility. Powered by a high-capacity lithium battery and protected by a CAT IV 600V safety rating, this premium instrument provides reliable performance in the most challenging industrial environments.
Whether an electrical engineer managing critical power infrastructure, a maintenance professional implementing comprehensive predictive maintenance programs, or a specialized contractor requiring the highest level of insulation assessment capabilities, the UNI-T UT513C offers the precision, features, and connectivity needed to elevate testing protocols and decision-making processes.
The UT513C sets a new standard in portable insulation testing with its extraordinary 5Tohms measurement range, allowing for accurate assessment of the highest-grade insulation systems used in aerospace, medical, specialized manufacturing, and critical power applications. The precision 5kV output with 10% stepping function provides detailed stress testing of insulation materials, while the integrated capacitance measurement capability up to 15.00uF enables comprehensive analysis of cable characteristics and insulation properties. This combination of features delivers a complete diagnostic picture that goes far beyond basic resistance readings.
- Ultra-high voltage insulation testing up to 5kV with precision control
- Industry-leading measurement range up to 5Tohms
- Selectable test voltages: 250V, 500V, 1000V, 2500V, and 5000V
- Bluetooth connectivity with dedicated mobile application for remote control and analysis
- High-resolution dot matrix display for enhanced data visualization
- PI (Polarization Index) and DAR (Dielectric Absorption Ratio) testing capabilities
- Automatic leakage current display during measurements
- Integrated capacitance testing up to 15.00uF
- Stepping voltage function for comprehensive insulation profiling
- Comparison function for automated pass/fail assessment
- Timer measurement for standardized testing protocols
- Extensive data storage for 999 measurement sets
- USB interface for PC data transfer and analysis
- High voltage output alarm with visual indicator
- 14.8V 5200mAh rechargeable lithium battery
- CAT IV 600V safety rating for maximum protection
Applications
- High-Voltage Electrical Equipment Testing
- Cable and Wire Insulation Testing
- Industrial Electrical Safety Inspections
- Laboratory and R&D Testing of Insulation Materials
Each Unit Includes
- 1 - 5kV Advanced Digital Insulation Tester (UT513C)
- 1 - Set of Test Leads (red, black, green: 1 for each)
- 1 - USB Cable
- 1 - 14.8V 5200mAh Lithium Battery Pack
- 1 - Lithium Battery Charger
- 1 - Carrying Strap
- 1 - User Manual
- 1 - Hard Carrying Case
- 1 - Test Certificate
