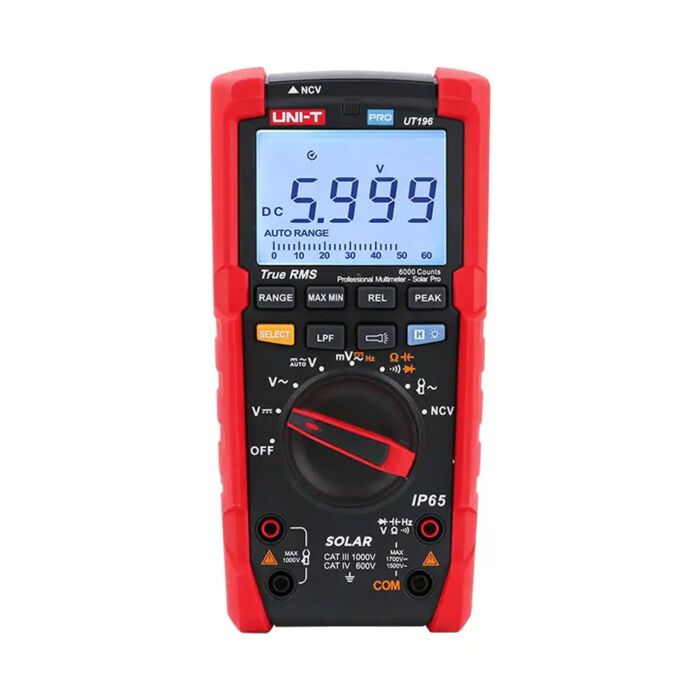

UT196 True RMS solar digital multimeter is an ideal tool for solar power system maintenance. This rugged meter is designed for technicians who work in rugged outdoor environments. UT196 can measure up to 1700V DC and 1500V AC voltages, and 3000A AC current with an external current clamp sensor. This solar meter offers IP65 protection and able to withstand 2m drop as well.
The low-pass filter function allows the meter to isolate high-frequency noise generated by the drive controller. Its low impedance mode can help technicians to troubleshoot sensitive circuits as well as circuits that may contain ghost voltages. The built-in flashlight, bright backlight and visual alarm enable users to finish the work safely and efficiently even in dark and noisy environments.
UT196 solar digital multimeter is designed with 1700V DC, 1500Vrms AC overload protection and tested for safe usage in CAT III 1000V, CAT IV 600V environments.
- True-RMS
- Measure up to 1700V DC and 1500V AC for high voltage applications e.g. solar array, wind
- IP65 protection
- CAT III 1000V, CAT IV 600V
- Analog bar
- Frequency response: 45Hz~1kHz
- Low-pass filter function
- Low impedance mode
- Built-in flashlight, bright backlight and visual alarm
- Certifications: CE, UKCA, cETLus
Applications
- Photovoltaic (Solar) System Installation and Maintenance
- Wind Energy Systems
- Electrical Safety Inspections
- Industrial Electrical Systems
Each Unit Includes
- 1 - True-RMS Solar Pro Multimeter, 1700 VDC/1500 VAC (UT196)
- 1 - 9V Battery
- 1 - Carrying Bag
- 1 - User Manual
