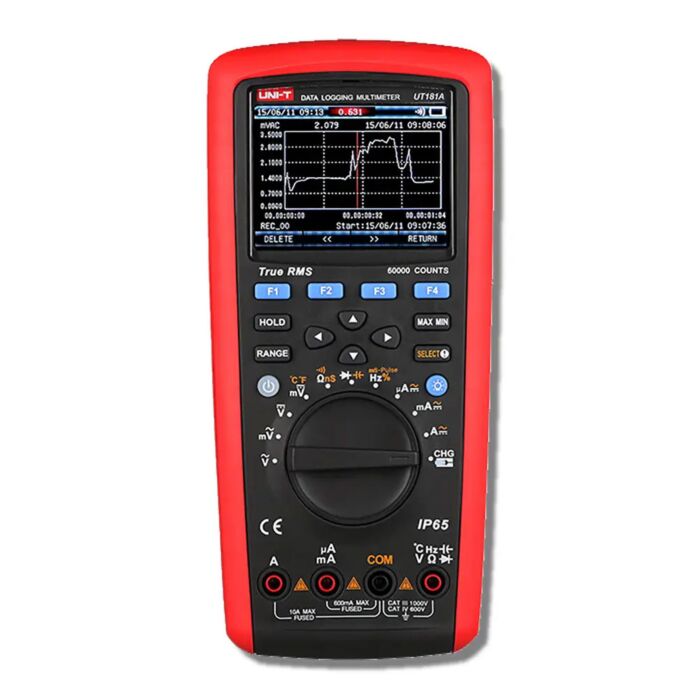

The UNI-T UT181A is a 60,000 count handheld auto-range True-RMS intelligent multimeter. The overall circuit is designed with LSI ADC as the core. The UT181A can be used to measure the parameters such as AC and DC voltage, AC and DC current, resistance, conductance, diode, continuity, capacitance, temperature, frequency and pulse width. It is provided with the functions of data hold, max./min./average measurement, comparison measurement, relative measurement, peak detection, trends capture and record/readback as many as 20,000pts.
- Display count 60,000 (320x240 resolutions 3.5" TFT Color LCD display
- Supports displaying multiple measurement results at the same time
- Trend Capture, 20,000pts Data logging, Graphing Display, Resistance, Capacitance, Frequency, Temperature, LoZ, Bluetooth, USB, IP65
- True-RMS response for AC voltage and AC current measurement with built-in low pass filter
- Data logging up to 20k data set memory; Data events include store, review, delete, plot in trend-diagram, Max, Min. and AVG
- p to 20A current measurement (30 seconds of measurement time)
- Standard USB cable for PC communication
- Rugged double molding and IP65 water proof industrial design
- Safety Rating: CAT IV 600V
- Certifications: cETLus, CE, ROHS
Applications
- Industrial Electrical Maintenance
- Automation and Control Systems
- HVAC and Building Systems
- Automotive Diagnostics
- Research and Development
Each Unit Includes
- 1 - True-RMS Datalogging Digital Multimeter (UT181A)
- 1 - Pair of Test Leads
- 2 - K-Type Temperature Probes
- 1 - Temperature Connector
- 1 - Charging Adapter
- 1 - Charging Connector
- 1 - USB Cable
- 1 - Cloth Bag
