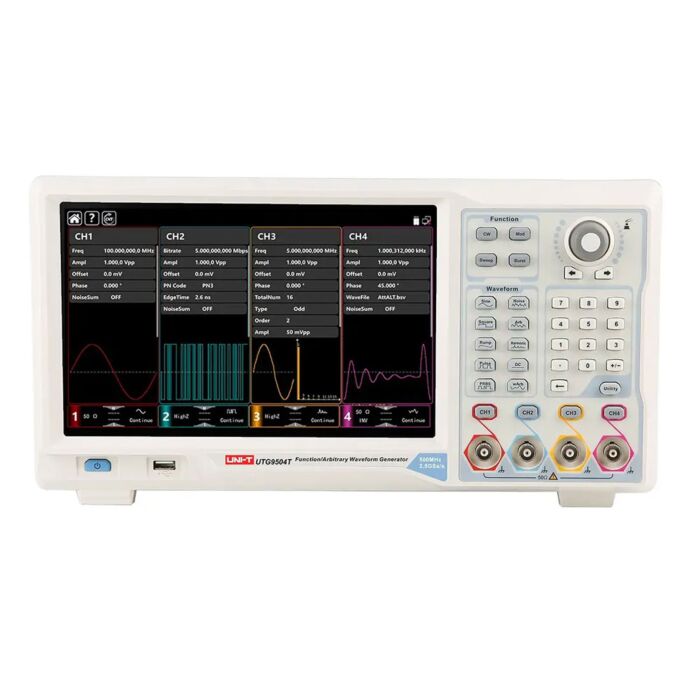

The UNI-T UTG9504T Elite-Series arbitrary waveform generator takes users test bench to the next level. Produce 500MHz signals in a variety of modulations.
This device incorporates the Direct Digital Synthesis (DDS) function, providing a high-precision, stable, pure, and low-distortion signal. Additionally, it excels in generating high-frequency waves with rapid rising and falling edges. As a high-performance, multifunction four-channel arbitrary function generator, it boasts a user-friendly touch screen, superior technical specifications, and a graph display designed for enhanced work performance. This versatile product is designed to meet both current and future testing requirements, offering a multitude of capabilities to support various applications.
Equipped with three standard serial protocols-SPI, I2C, and UART the UTG9354T allows users to compile corresponding parameters and generate serial signal waveforms for each protocol. This functionality serves to test and verify protocol interfaces, providing input signals for interface assessment. This feature enhances the specificity and effectiveness of interface measurements during operations. UTG9504T offers the capability to combine CH1 with CH2 and CH3 with CH4, providing exceptional real-time and true superposition features to display complex waveforms effectively. UTG9504T has a nonvolatile memory that stores more than 200 types of standard waveforms. The upper-computer software allows for the creation and compilation of arbitrary waves. Users can utilize the USB interface on the front panel to access arbitrary wave data files from a USB. This feature offers a wide range of flexible arbitrary waves for testing standard waveforms in various fields such as medical, biological, mathematical, and others.
- Frequency Output: 500MHz
- Channels: 4
- Sample Rate: 2.5GSa/s
- Arbitrary Wavelength: 64Mpts
- Vertical Resolution: 16 bits
- Minimum Edge Time: within 1.5ns, adjustable duty ratio
- Maximum Output Swing: 20Vpp
- Digital Protocol Output: SPI, I2C, UART
- Direct Digital Synthesis (DDS) function, provides a high-precision, stable, pure, and low-distortion signal
- Stores more than 200 types of standard waveforms
- Nine carrier waves: sine wave, square wave, ramp wave, pulse wave, harmonic wave, noise, PRBS (pseudo random binary sequence), DC, arbitrary wave
- Output phase and amplitude, independent and adjustable 2~16 harmonic wave
- Abundant modulation types: AM, FM, PM, DSB-AM, QAM, ASK, FSK, 3FSK, 4FSK, PSK, B PSK, Q PSK, OSK, PWM, SUM
- Linear sweep, logarithmic sweep, list frequency sweep, stepping frequency sweep
- Offer frequency sweep and burst (pulse string) output
- Digital protocol output: SPI, I2C, UART
- SNR(signal to noise ratio) one-click output
- Double channel can be internal/external modulating, internal/external/trigger respectively or at the same time
- Hardware frequency counter: 800 MHz, AC/DC current coupling
- Powerful upper-computer software and arbitrary editor
- 10.1 capacitive touch screen, 1280*800 resolution
- Standard configuration interface: USB Host, USB Device, LAN, independent input and output 10MHz clock source
- Easy-to-use multi-purpose knob and numeric keyboard
Applications
- High-Frequency Analog/Digital Electronics Design & Test
- Communications & Modulation System Testing
- Multi-Channel/Multi-signal System Development
- Arbitrary Waveform Generation & Advanced Lab/Bench Use
- Production/Test-Bench and Calibration/Repair Environments
- Education & Training in Advanced Signal Generation
Each Unit Includes
- 1 - 500MHz, 4-Channel Elite-Series Arbitrary Waveform Generator (UTG9504T)
- 1 - Power Cord
- 1 - BNC Straight Line
- 1 - USB2.0 Printing Cable
