The UNI-T UTG2000X arbitrary waveform generator comes loaded with an extensive library of signal shapes and waveform options, providing you with a diverse range of signals to work with. With over 200 different signal shapes, you have the flexibility to create unique and intricate waveforms. Arbitrary waveform length 8pts - 64Mpts, can output low jitter waveform point by point. Employ these waveforms to simulate real-world signals in testing and validation processes.

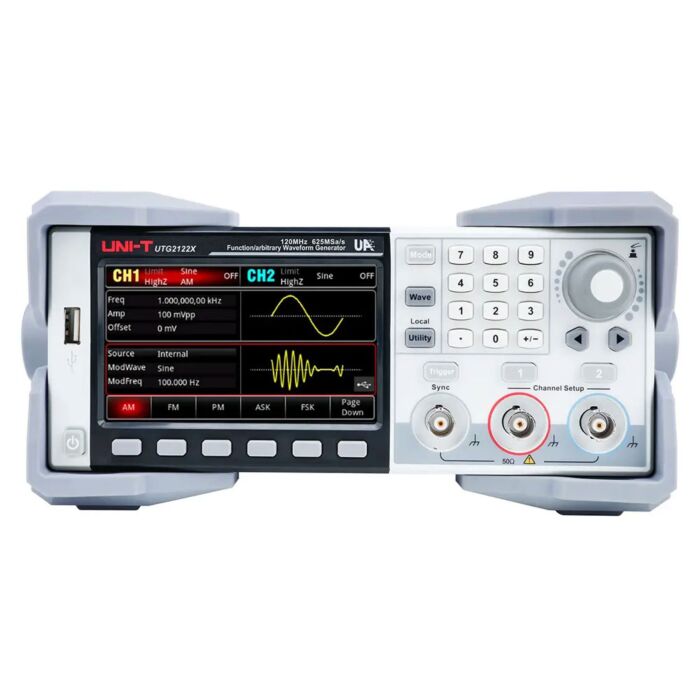

The UNI-T UTG2122X is a high-performance arbitrary waveform generator designed for engineers and researchers who require precision, versatility, and efficiency in signal generation. With a maximum output frequency of 120 MHz and 16-bit vertical resolution, it delivers superior accuracy for a wide range of applications, from RF testing to analog circuit simulations. The generator supports multiple basic and advanced waveforms, including sine waves, square waves, pulses, and arbitrary waveforms, while also offering advanced expression output capabilities for mathematical modeling and waveform synthesis.
- Frequency Range: 1 µHz - 120 MHz
- Channels: 2
- Sampling Rate: 1.25 GSa/s
- Vertical Resolution: 16-bits
- Low Distortion: <0.07% (DC - 20 kHz, 1Vpp)
- Waveforms: Sine, Square, Pulse, Ramp, 200 built-in Arbitrary, Harmonic, Expression, PRBS, Noise, DC
- Modulations: 15 analog and digital modulations
- Display: 4.3-Inch Touch Screen
- Square/Pulse wave: 1 µHz - 30 MHz
- Hardware frequency counter: 7-bit, 100 mHz - 200 MHz
- Programmable: Supports SCPI programmable instrument standard commands
- Interfaces: USB Host/Device, LAN, 10 MHz Ext In, 10 MHz Ext Out, Ext. Analog Mod In, Ext Mod/Trigger Out, Sync Out
Applications
- Electronics Design & Prototyping
- Signal Simulation
- Education / Training Labs
- Service / Repair / Bench Testing
- Automated Test Systems / R&D Labs
Each Unit Includes
- 1 - 120MHz, 2-Channel Advanced-Series Arbitrary Waveform Generator (UTG2122X)
- 1 - BNC Straight-Through Cable
- 1 - BNC to Alligator Clip Cable
- 1 - Power Cord
- 1 - USB2.0 Printing Cable
