UTG2000B series can produce high precision, stable, pure and low distortion signals; provide high frequency square wave with quick rise and falledges. Users can improve their working efficiency by using the multifunctional instrument of easy operated interface, competitive specifications and humanized graphical display.

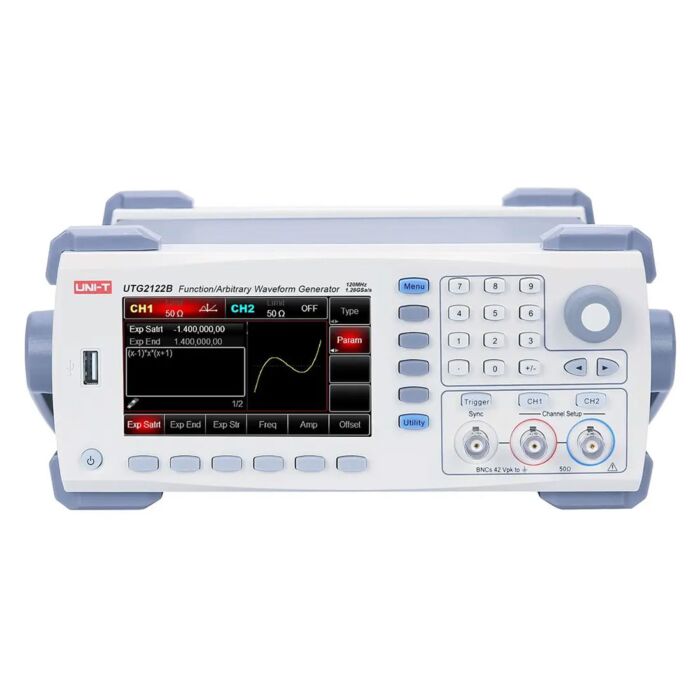

The UNI-T UTG2122B Advanced-Series arbitrary waveform generator is a stable 120MHz source for your test bench. With an impressive feature set, including 16-bit resolution, and an expansive 16Mpts arbitrary waveform length, this instrument excels at reproducing waveforms with exceptional fidelity and minimal jitter.
The two-channel UTG2122B waveform generator offers a plethora of basic waveforms, including sine waves, square waves, ramps, pulses, harmonics, noise, DC signals, expressions, and arbitrary waveforms.
- Frequency Output: 120 MHz
- Channels: 2
- Sample Rate: 320 MSa/s
- Vertical Resolution: 16 bits
- Arbitrary Wavelength: 16Mpts
- Highly accurate and stable DDS (direct digital synthesizer) signal generation
- Dual independent channels with coupling output mode
- Modulation Types: AM, FM, PM, PWM, ASK, FSK, PSK, BPSK, QPSK, OSK, DSB-AM, SUM, and QAM
- Frequency Sweep: Linear, Logarithmic
- Frequency Counter measuring from 100mHz-200MHz
- Max Output: 10Vp-p (50Ω)
- Interface: USB Device/Host, LAN
- Display: 4.3in TFT LCD screen
- Certifications: cETLus, CE, ROHS, UKCA
Applications
- Electronics Design & Prototyping
- Signal Simulation & Modulation Experiments
- Education / Training Labs
- Service / Repair / QC Testing
- Automated Test Systems / R&D Labs
Each Unit Includes
- 1 - 120MHz, 2-Channel Advanced-Series Arbitrary Waveform Generator (UTG2122B)
- 1 - BNC Straight-Through Cable
- 1 - BNC to Alligator Clip Cable
- 1 - Power Cord
- 1 - USB2.0 Printing Cable
