Utilizing advanced direct digital synthesis technology, the UTG1022X ensures the generation of highly accurate and stable waveform outputs, boasting an impressive resolution of 1µHz. This makes it an economical, high-performance, and multi-functional arbitrary waveform generator.

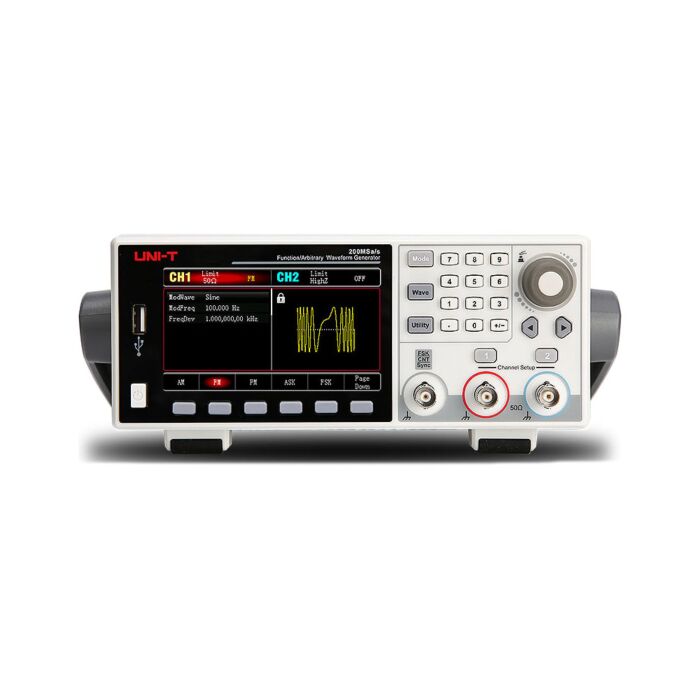

The UNI-T UTG1022X-PA Essential-Series arbitrary waveform generator with 4W power amplifier module is a stable 20MHz source for your test bench. Utilizing advanced direct digital synthesis technology, the UTG1022X-PA ensures the generation of highly accurate and stable waveform outputs, boasting an impressive resolution of 1µHz. This makes it an economical, high-performance, and multi-functional arbitrary waveform generator.
- Frequency Output: 20MHz
- Channels: 2
- Sample Rate: 200MSa/s
- Vertical Resolution: 16bits
- Arbitrary Wavelength: 4kpts
- Built-in 4W power amplifier module
- Working Mode: Continue, Modulation, Frequency Sweep
- Continue: Sine, Square, Ramp, Pulse, Noise, DC, Arb
- Modulation Types: AM, PM, FM, ASK , PSK, FSK, PWM
- Frequency Sweep: Linear, Logarithmic
- Three pulse modes: "N cycle," "infinite," and "gated" On top of these bursts
- Two modulation signal sources: "Internal" and "External"
- Built-in 200 arbitrary waveforms
- Features a 6-bit Frequency Counter, measuring from 100mHz-200MHz
- Easy to use software for creating arbitrary waveforms
- High resolution output to 1µHz
- Max Output: 10Vp-p (50Ω)
- Interface: USB Device/Host
- Display: 4.3in TFT LCD screen
- Certifications: cETLus, CE, ROHS, UKCA
Applications
- Electronics Design & Prototyping
- Educational/ Training Labs
- Repair/ Maintenance/ Testing
- Production or QA Testing
Each Unit Includes
- 1 - 20MHz, 2-Channel Essential-Series Arbitrary Waveform Generator (UTG1022X-PA)
- 1 - 4W Power Amplifier Module (Built-in)
- 1 - BNC Straight-Through Cable
- 1 - BNC to Alligator Clip Cable
- 1 - Power Cord
- 1 - USB2.0 Printing Cable
