UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor technicians.

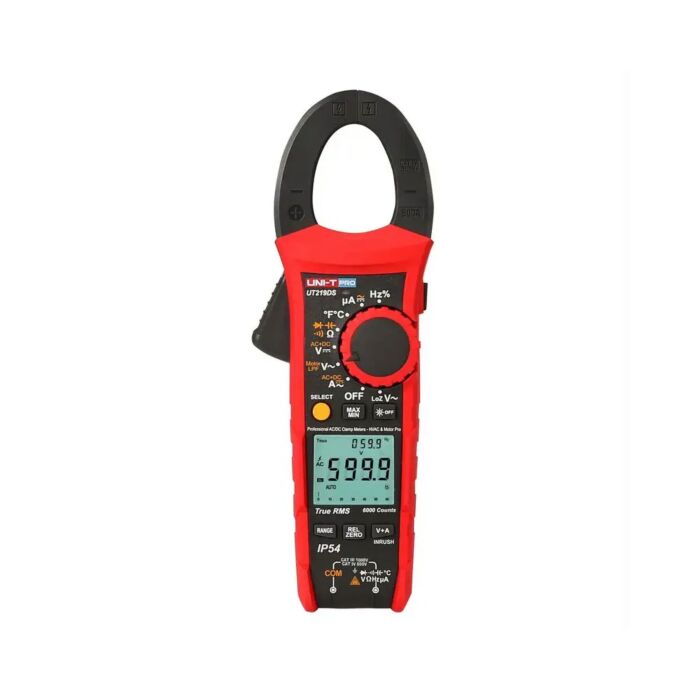

The UNI-T UT219DS True-RMS Industrial Clamp Meter combines specialized motor testing features with innovative dual-display capability for simultaneous parameter monitoring. Built on the same rugged platform with IP54 protection and 2-meter drop resistance, this premium clamp meter adds advanced measurement capabilities, faster sampling rates, and sophisticated visualization features for comprehensive electrical diagnostics.
The UT219DS transforms electrical diagnostics with its innovative dual-display interface, allowing technicians to simultaneously monitor voltage and current during critical measurements. This unique capability streamlines power analysis, load testing, and system verification by displaying multiple parameters at once, significantly reducing the time required for comprehensive testing.
The accelerated sampling rate of 5 times per second provides more responsive readings for dynamic systems and transient events, while the analog bar graph updates at an impressive 20 times per second for real-time visualization of changing values. This combination of dual-display capability and responsive measurement creates an unparalleled diagnostic experience for industrial professionals.
- Dual-Display Interface: Monitor voltage and current simultaneously for power analysis
- Enhanced Low Pass Filter: 1kHz with 3dB attenuation for accurate VFD measurements
- V+A Simultaneous Monitoring: Dual parameter display for efficiency testing
- Accelerated 5 Times/Second Sampling: Responsive readings for transient events
- 3-Phase Motor Sequence Testing: Prevent motor damage with proper rotation verification
- 20 Times/Second Analog Bar: Real-time visualization of rapidly changing values
- AC/DC Voltage: Test up to 1000V for comprehensive system coverage
- LoZ Mode: 600V low impedance measurement eliminates ghost voltage readings
- Resistance: Multiple ranges up to 60Mohms for detailed component testing
- Capacitance: Measure up to 60mF for motor start capacitor verification
- Frequency: Accurate measurement from 10Hz to 10MHz
- Temperature Measurement: -40°C to 1000°C range with included temperature probe
- True RMS Measurement: Accurate readings on variable frequency drives and electronic loads
- DC Current Measurement: Up to 600A DC plus 2000µA precision range
- CAT III 1000V / CAT IV 600V Safety Rating: Professional protection for industrial applications
Applications
- Industrial Electrical Maintenance & Troubleshooting
- HVAC / Motor / Pump Services
- Three-Phase Systems / Load Balancing / Power Quality Checks
- General Electrical Installation / Verification
- Field Service & Portable Instrumentation
Each Unit Includes
- 1 - True-RMS Industrial Clamp Meter (UT219DS)
- 1 - Set of Test Leads
- 1 - Point Contact Temperature Probe
- 3 - Batteries (1.5V R03)
- 1 - Carrying Bag
- 1 - User Manual
