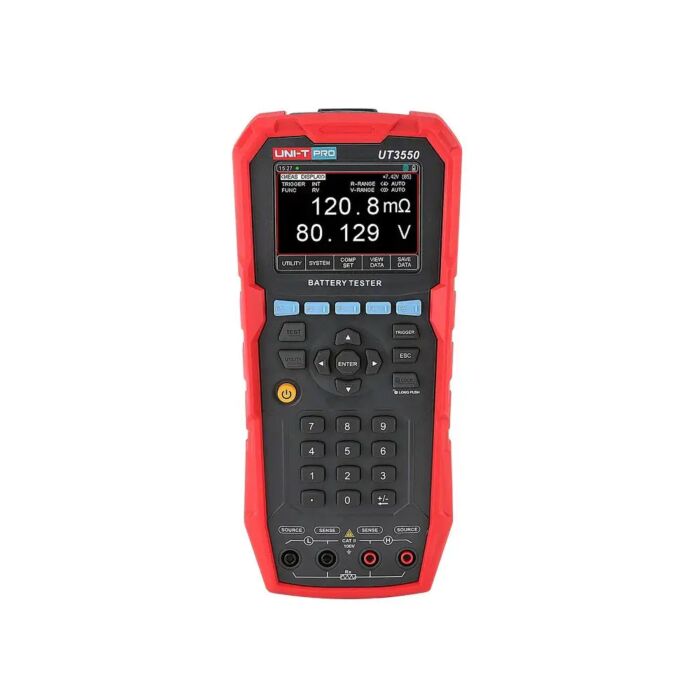

UT3550 is a hand-held battery tester with automatic real-time detection. It has the portability of handheld instruments and the superior performance of Bench instruments.It is a measuring instrument with high accuracy and high resolution. Equipped with USB type C interface for remote control and data acquisition and analysis.Support SCPI protocol. It is mainly used in the quality inspection of various batteries. UPS can be directly measured online with high accuracy.
The UNI-T UT3550 Battery Tester delivers exceptional testing precision and versatility for professionals requiring accurate battery performance analysis. Combining the convenience of a handheld instrument with bench-top measurement capabilities, this advanced tester offers industry-leading accuracy of 0.5% for resistance and 0.05% for voltage measurements. With its innovative AC internal resistance test methodology, the UT3550 can evaluate almost all battery types from small consumer cells to large industrial installations, making it invaluable for quality control, maintenance, and troubleshooting applications.
The instrument's dual-display system features a 3.5-inch main LCD and auxiliary 0.96-inch OLED screen, enabling technicians to quickly assess measurement data even in challenging environments. With comprehensive connectivity options including USB Type-C for remote control and data acquisition, the UT3550 seamlessly integrates into both manual inspection workflows and automated testing systems. Engineered for real-world applications with IP65 protection, robust construction, and extended 5-hour battery life, the UNI-T UT3550 delivers the performance, reliability, and efficiency that battery testing professionals demand.
- High-accuracy: resistance 0.5%/ voltage 0.05%
- Resistance measurement range: 0.001m O ~ 30.00 0
- Voltage measurement range: 0.0001V ~ 100.00V
- Resolution: resistance: O.OOlmO voltage: O.lmV
- Comparison mode: SEO, PER, ABS
- The new AC internal resistance test method can measure almost all types of batteries
- 3.5-inch LCD main display
- 0.96 inch auxiliary display screen
- UPS can be measured directly on line
- USB data storage and screenshot saving function
- Lithium battery power supply (2000mAh)
- Provide type C interface to realize remote control
- Support SCPI protocol
- Protection grade IP65
Applications
- Battery Manufacturing / Quality Control
- Battery Pack Assembly / Pack Testing / Module Testing
- Service, Maintenance and Diagnostics of Battery Systems
- Research & Development / Laboratories
- Screening and Sorting of Cells for High-Performance Applications
Each Unit Includes
- 1 - Battery Tester (UT3550)
- 1 - Power Adapter (9V 2000mA)
- 1 - Soft Carrying Case with UNI-T Logo
- 1 - Shoulder Strap
- 1 - USB Type-C Communication Cable
- 1 - Magnetic Hanging Belt
- 1 - Kelvin test Clips Set with Red and Black Test Leads
- 1 - Calibration Certificate
- 1 - User Manual
