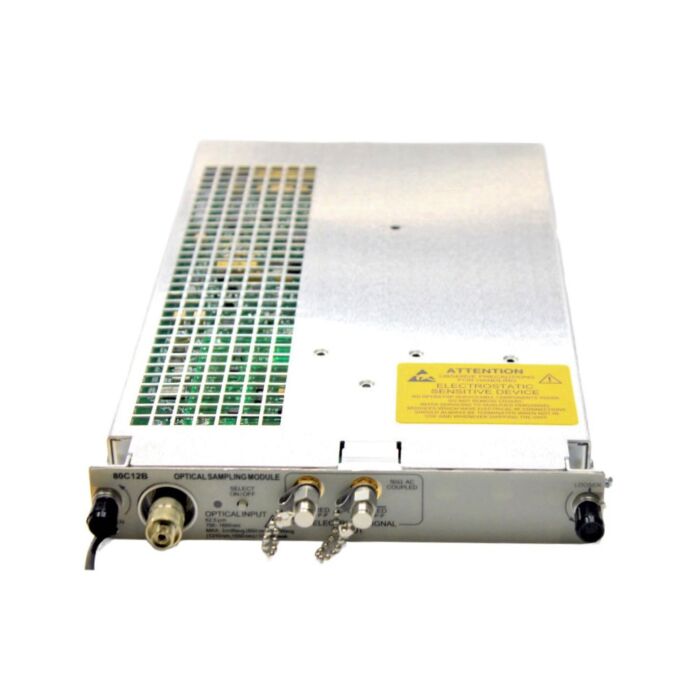

Tektronix 80C12B for Rent, Amplified Optical Sampling Module, Broad Wavelength, 12GHz
Order #: 80C12B-RENT3
Mfg #: 80C12B
Product Highlights
The Tektronix 80C12B Amplified Optical is a broad wavelength 700 to 1650 nm multirate optical sampling module providing telecom and datacom testing for standards from 155 Mb/s to 11.4 Gb/s. This highly flexible card can be configured to support a wide variety of 10 Gb/s applications, lower data rate applications (155 Mb/s to 7.4 Gb/s), or a combination of 10G and lower data rate standards. The low data rate applications include: Telecom applications from 155 to 2666 Mb/s, 1G, 2G, and 4G Fibre Channel, multilane standards such as 10GBASE-X4 and 4-Lane 10 Gb/s Fibre Channel, and Infiniband SDR and DDR rates. The supported 10 Gb/s application includes both datacom and telecom standards. The supported 10 Gb/s datacom applications include 10GbE, 40GbE-R4, 100GbE-SR10 applications at 9.953, 10.3125, 11.0957 Gb/s and 10G Fibre Channel applications at 10.51875 Gb/s and 11.317 Gb/s. The 80C12B also provides telecom rate testing at 9.953, 10.664, and 10.709 Gb/s. With its amplified O/E converter design, this module provides excellent signal-to-noise performance and high optical sensitivity, allowing users to examine low-power optical signals. The Tektronix 80C12B provides an electrical clock recovery output (AC coupled) to beyond 12 Gb/s data rates, which is compatible with the CR125A-HS or 80A05 (sold separately).
Features
- Low-noise
- High optical sensitivity
- Broad wavelength conformance testing for:
- 10 GbE
- 40 GbE (R4)
- 100 GbE (X10) LAN, WAN, FEC
- 10G Fibre Channel
- 10 Gb/s telecom standards and FEC rates
