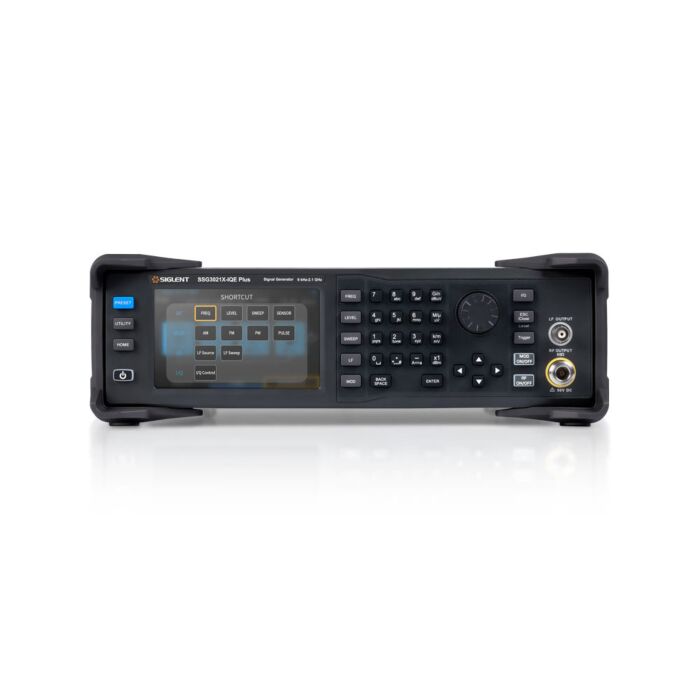

SIGLENT'S SSG3021X-IQE signal generators have a frequency range of 9 kHz to 2.1 GHz and calibrated output levels from -110 dBm to +13 dBm (typical to +20 dBm). It provides standard analog modulation such as AM, FM, and PM as well as optional pulse modulation and pulse train generation. External I/Q modulation is also provided by using the Siglent SDG6000X family of generators with the I/Q option (not included). The SSG3021X offers amplitude resolution of 0.01 dB and frequency resolution of 0.01 Hz. Level accuracy is <=0.7 dB (Typ.). With its high accuracy and pure output, the SSG3000X series is the right choice for R&D, education, and manufacturing.
- 9 KHz - 2.1 GHz
- External I/Q modulation available when using a Siglent SDG6000X-series generator as the modulation source
- -110 dBm - +13 dBm (+20 dBm Typ.)
- Phase Noise: -110 dBc/Hz @ 1 GHz, 20 kHz offset (Typical)
- Pulse Modulation, on/off ratio >= 70 dB
- Touch Screen Display
- Supports External Mouse and Keyboard
- LAN, USB Host, USB Device, GPIB (Optional interface adapter)
- Reference: 10.000000 MHz, Initial Calibration Accuracy: <0.2 ppm
- Level Step Sweep
Applications
- Research and Development (R&D)
- Education and Training
- Manufacturing and Production
- Communications & Component Testing
Each Unit Includes
- 1 x 2.1 GHz RF Signal Generator with external IQ Function
- 1 x Quick start Guide
- 1 x Guarantee Card
- 1 x Power Cord
- 1 x USB Cable
