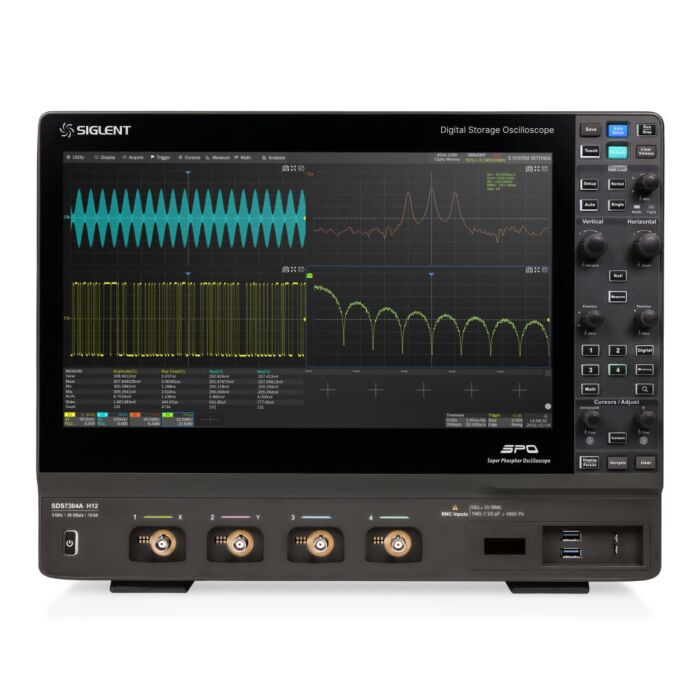

Siglent SDS7304A H12 Digital Oscilloscope, 3 GHz, 16 Channels
Digital Oscilloscope

Order #: SDS7304A H12

Mfg #: SDS7304A H12

Questions about availability or need help? Contact Us:

(800) 633-0561
$21,080.00

Siglent SDS7304A H12 Digital Oscilloscope, 3 GHz, 16 Channels

Digital Oscilloscope

Order #: SDS7304A H12

Mfg #: SDS7304A H12

$21,080.00
Availability: Ships in 3-4 weeks

Product Highlights

The Siglent SDS7000A features a 12-bit ADC with a sample rate of up to 20 GSa/s and a standard memory depth of 500 Mpts/ch.

The SDS7000A employs Siglent's SPO technology with a maximum waveform capture rate of up to 1,000,000 wfm/s, a 256-level intensity grading display function, and a color temperature display mode. It also features an innovative digital trigger system with high sensitivity and low jitter, supporting multiple powerful triggering modes. Tools such as History waveform recording, Search and Navigate functions, Signal Scan, and more enable extended waveform records to be captured, stored, and analyzed.

The large 15.6" HD capacitive touch screen supports multi-touch gestures, with the addition of a user-friendly UI design, which can greatly improve operational efficiency. It also supports mouse control and remote web control over LAN.

Features

  • 4 analog channels / 3 GHz bandwidth
  • 16 digital channels (requires optional SPL2016 logic probe and SDS7000A-16LA software)
  • Memory depth: 500 Mpts/ch (1 Gpts/ch via option SDS7000A-1GPTS)
  • Real-time sampling rate: 20 GSa/s
  • Waveform capture rate: up to 1,000,000 wfm/s
  • 15.6" HD capacitive touch screen (1920 x 1080) with multi-touch gesture support
  • Built-in 50 MHz arbitrary waveform generator (via option SDS7000A-FG)
  • Automatic measurements on 50+ parameters
  • I2C, SPI, UART, CAN, and LIN included standard
  • 12-bit ADC
